KLTV Series
Cab Chassis Truck
Kia developed its Light Tactical Vehicle with great mobility and high survivability that best suits a changed battle environment and efficient tactical operations based on its long-accumulated technology and infrastructure for commercial and military vehicles.

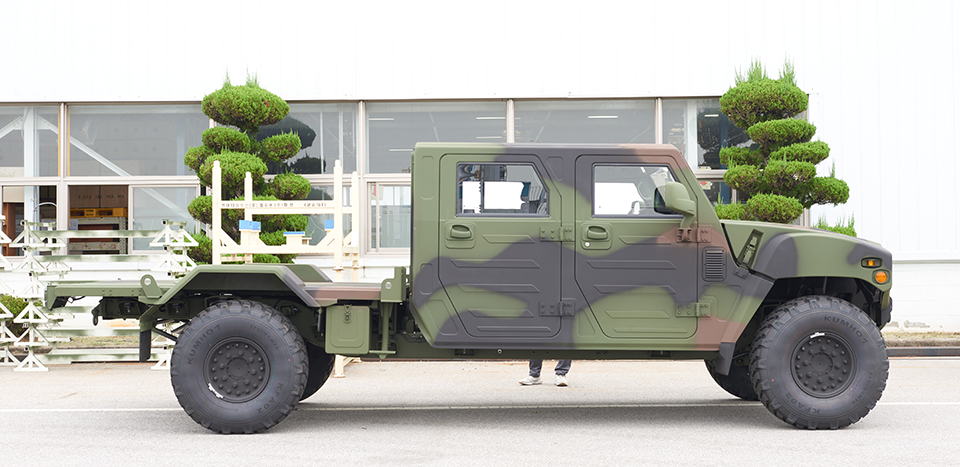

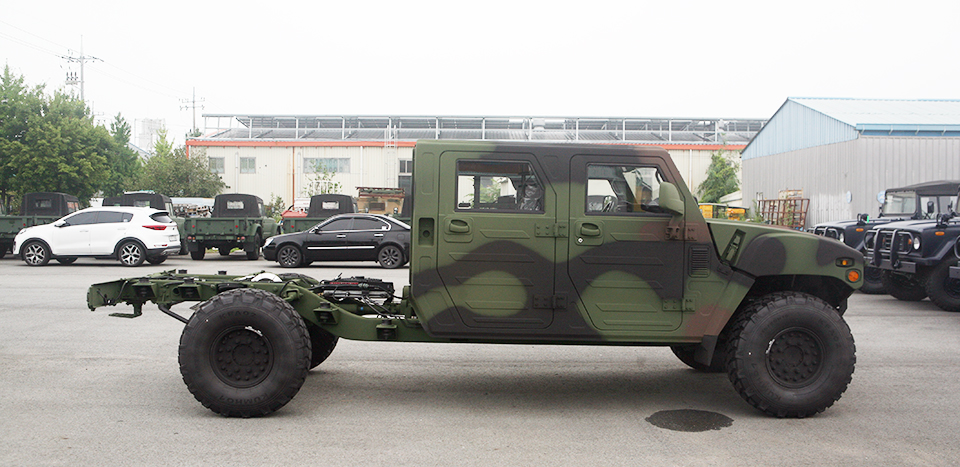

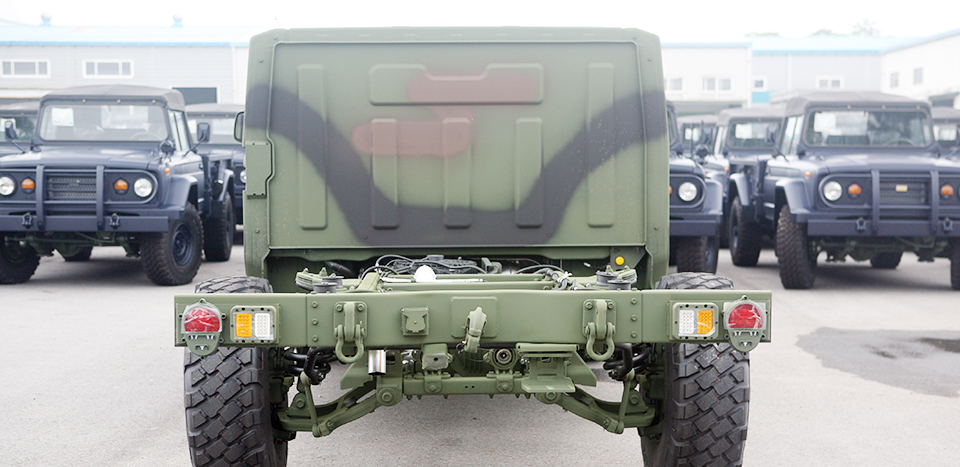

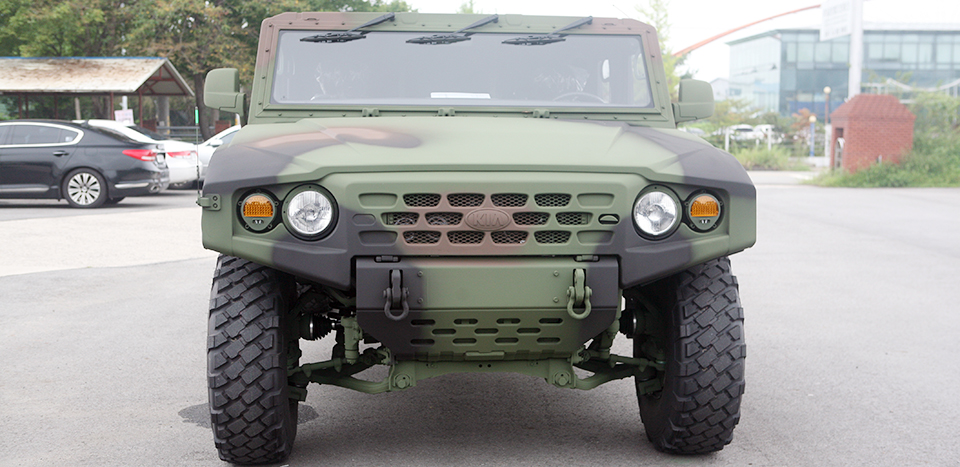

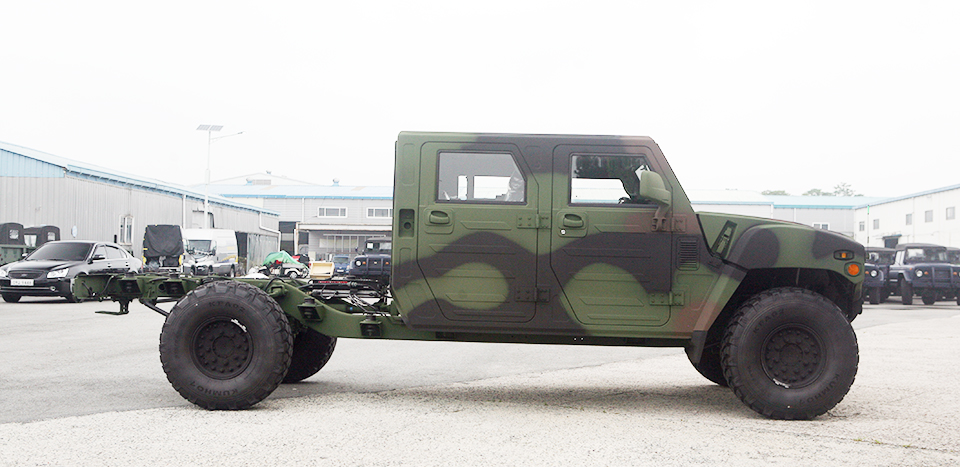

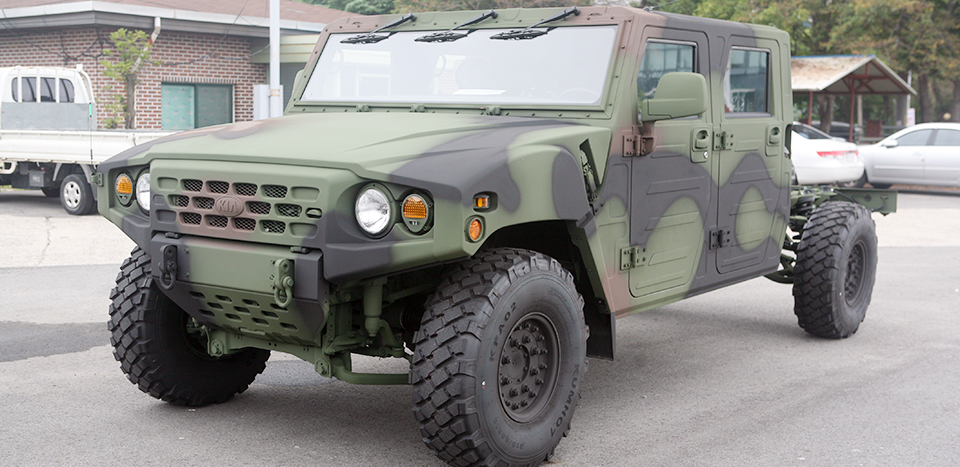

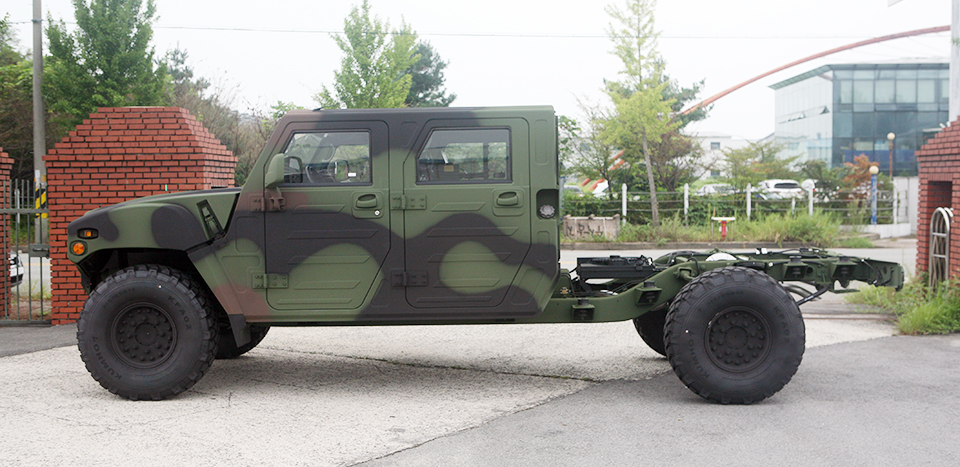

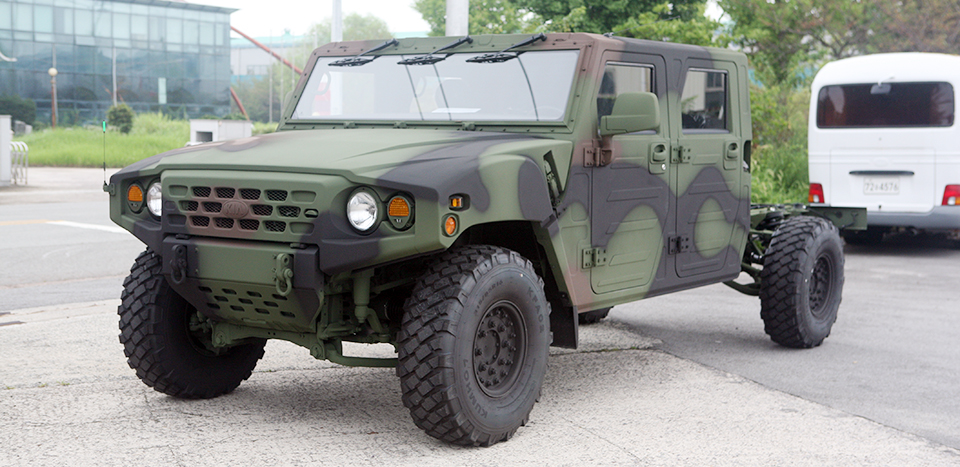

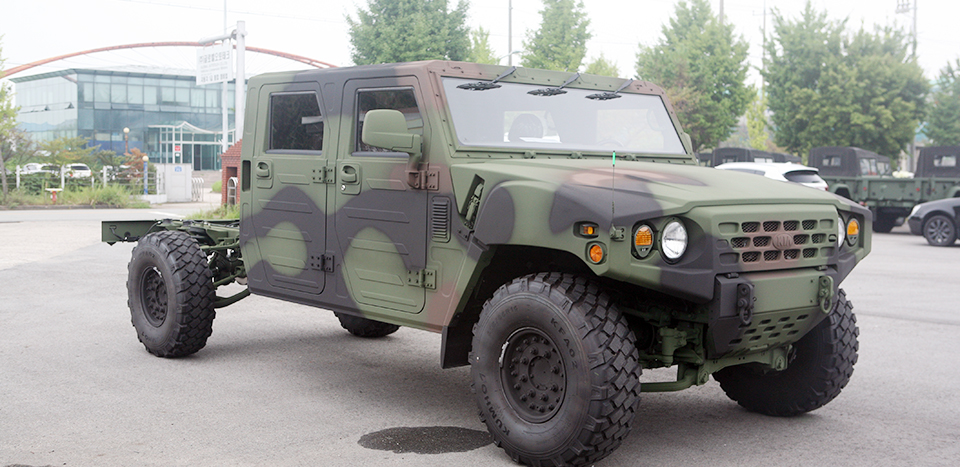

This KLTV240 is a cab chassis truck that provides versatility for various add-on superstructure modules.
FEATURES
-
225-HP diesel engine
A high-performance eco-friendly diesel engine which boasts strong horsepower and torque optimized for military purpose with its unyielding power, excellent fuel economy and super durability.
-

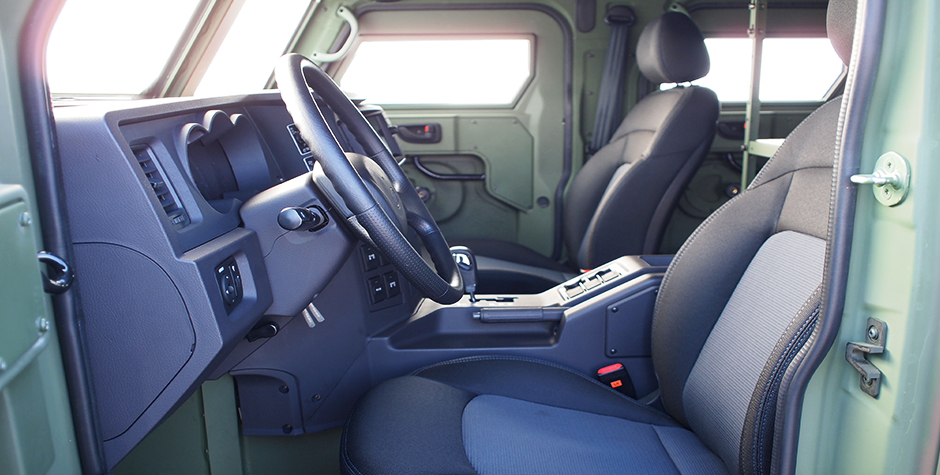

Air conditioner
Provides a pleasant environment to riders all the time and secures visibility of a driver by defrosting the windshield.
-
8-Speed Automatic transmission
Enhanced fuel economy, shift quality and driving performance with multi - speeds transmission.
-
Rear-View Camera
Enhancing safety and parking convenience in reversing.
-
All wheel drive (AWD)
The all wheel drive function is applied for improving tracking and hauling power, steering capability and stability, and off-road driving power.
-

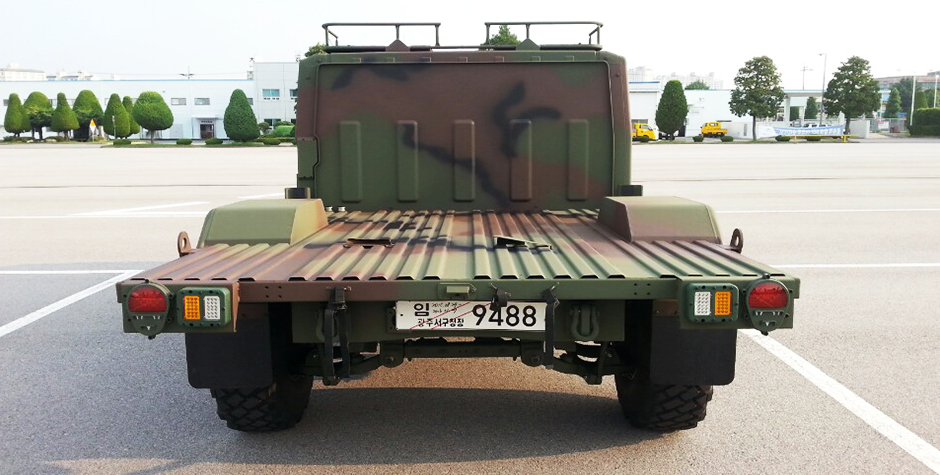

Mounting special equipment

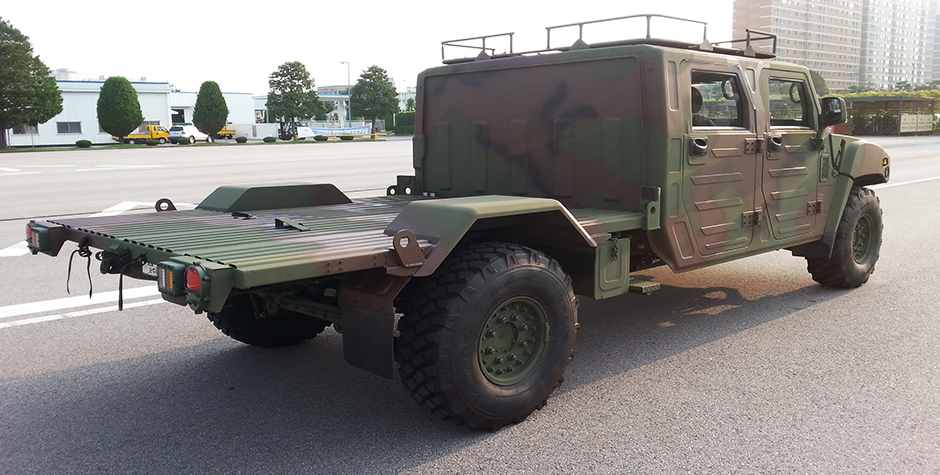

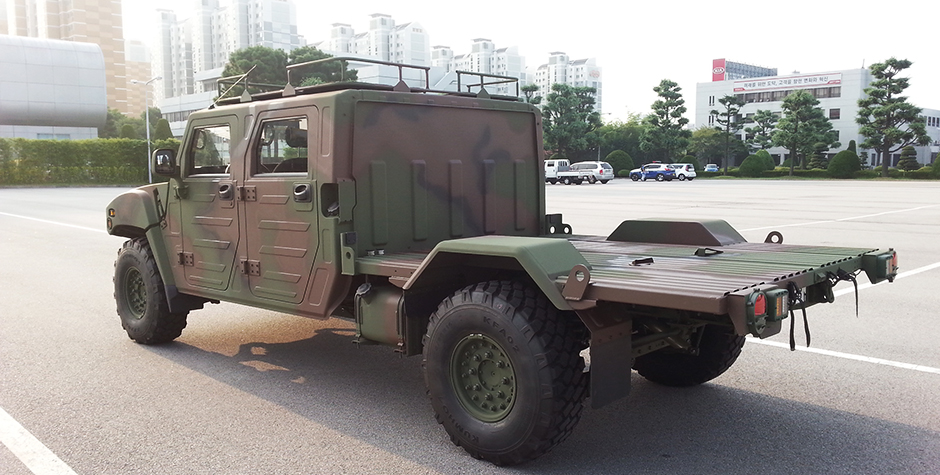

Chassis vehicle with flat bed for mounting and connecting equipment on carrying box.
-

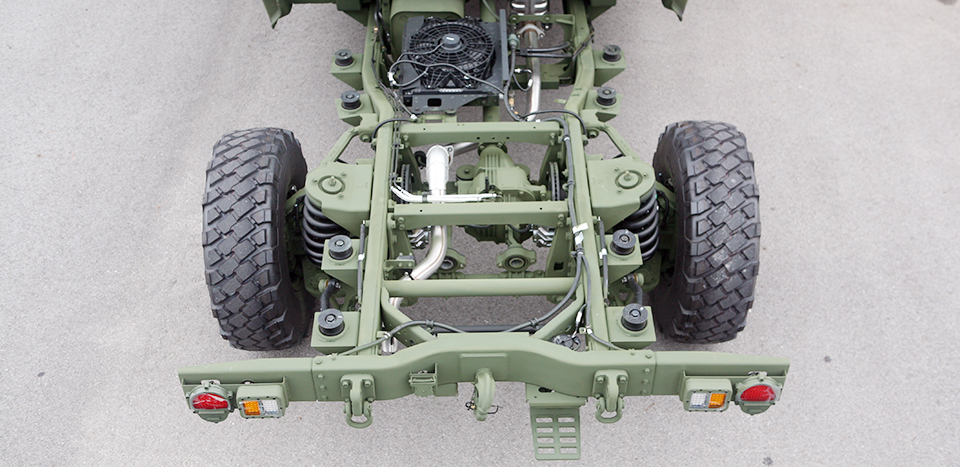

Independent suspension
Ensuring superb riding comfort and stable maneuverability as 4 wheels are independently operated during driving on rough terrain, and exerting strong driving and braking power by enhancing the traction with the road surface.
-
Utilization for driverse purposes
Special systems are mounted on the vehicle for performing various functions.
Communication shelter mounted. -
Hub reduction axle
Raising the ground clearance of the body by applying the hub reduction portal axle, and enhancing the off-road driving capability on unpaved roads/rough terrains with additional reduction of the gear ratio for the increase of torque.
-
Power Window
Convenience features to elevate the door automatically.
-
4 channel ABS
By judging the amount of slipping of wheels and controlling the brake pressure, maintaining the stability of the vehicle and shortening the braking distance.
-
Hybrid generator(Opt.)
Enhancing the operational efficiency by supplying power to the equipment through the power generation using the engine’s rotational force and also the power generation while driving or stopping.
-
Winch(Opt.)
When a vehicle becomes immobile due to obstacles or malfunction, it can be towed or tow itself out.
KLTV Series Cab Chassis Truck
Type | Technical Data | |
---|---|---|
Overall length | mm | 6,050 |
Overall width | mm | 2,195 |
Overall height | mm | 1,980 |
Ground Clearance | mm | 410 |
GVW | kg | 7,000 |
Engine Power | ps@rpm | 225@3,200 |
Engine Torque | kg·m@rpm | 51@1,750 |
Max. Speed | km/h | 130 |

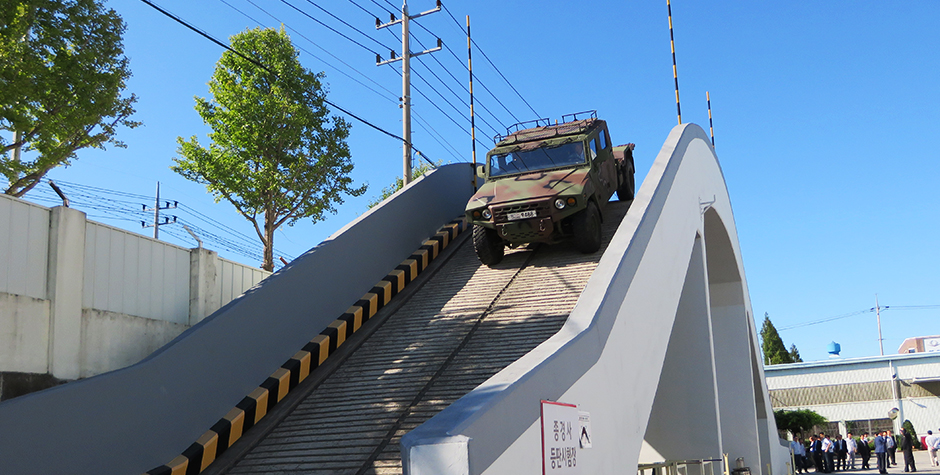

Gradient | % | 60 |
Min Turning Radius | m | 9.2 |
Fording Depth | mm | 760 |
Cruising Range | km | 560 |
Weight | Kg | 4,050 |
Maximum Payload | kg | 2,950 |

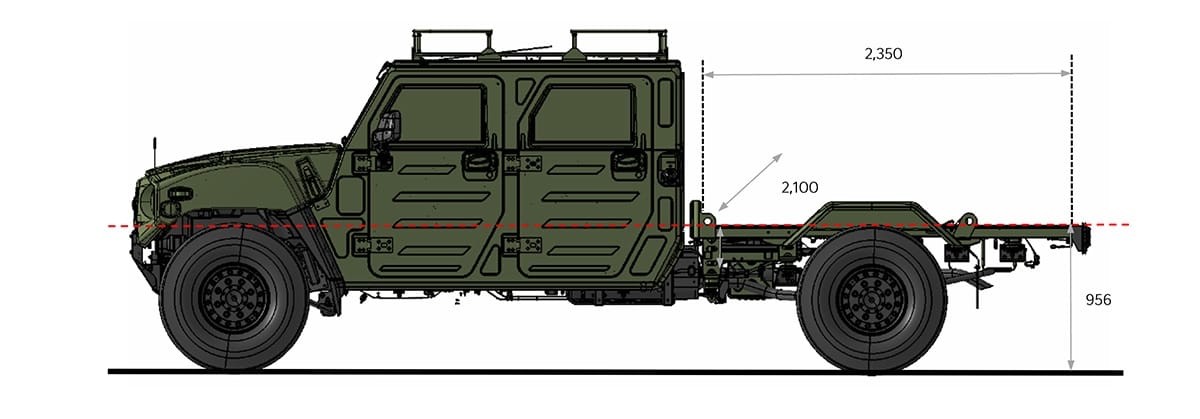

Bed Length | mm | 2,350 |
Bed Width | mm | 2,100 |
Bed Height | mm | 956 |
