  • Kia developed its Light Tactical Vehicle with great mobility and high survivability that best suits a changed battle environment and efficient tactical operations based on its long-accumulated technology and infrastructure for commercial and military vehicles.

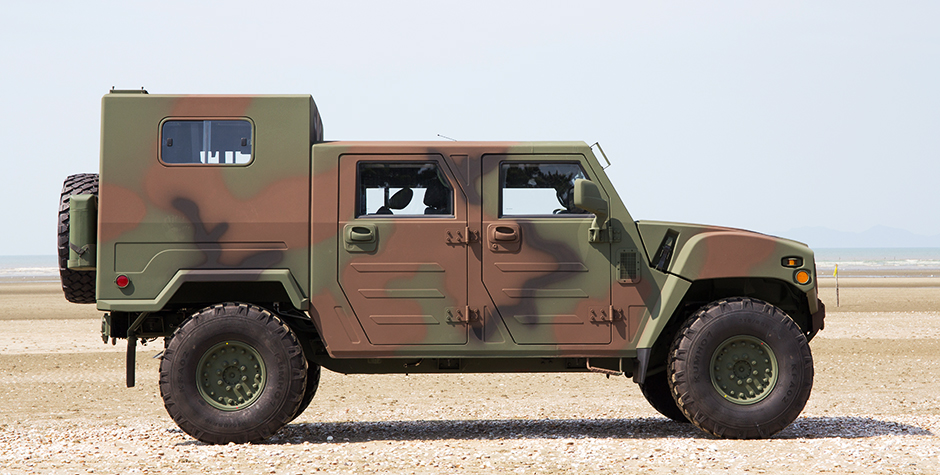

    This KLTV280 is a multi purpose vehicle with outstanding field mobility and high payload capacity for target observation or any other functional mission.

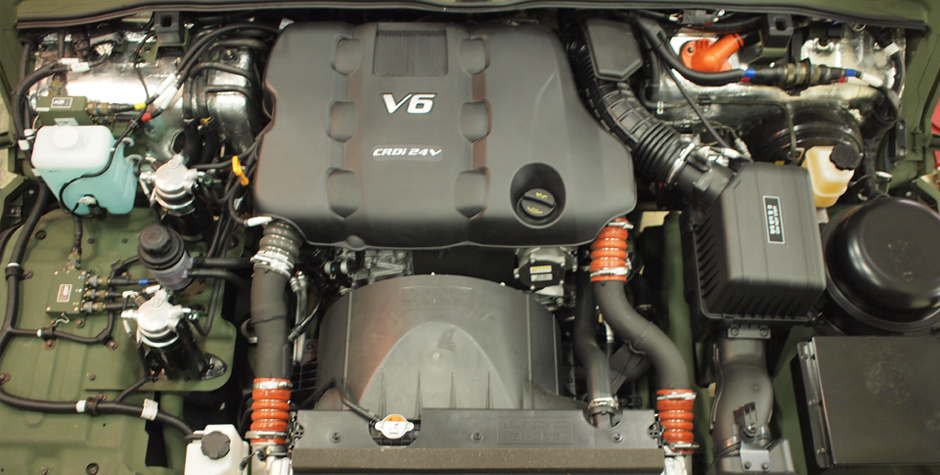

    • 225-HP diesel engine

      A high-performance eco-friendly diesel engine which boasts strong horsepower and torque optimized for military purpose with its unyielding power, excellent fuel economy and super durability.

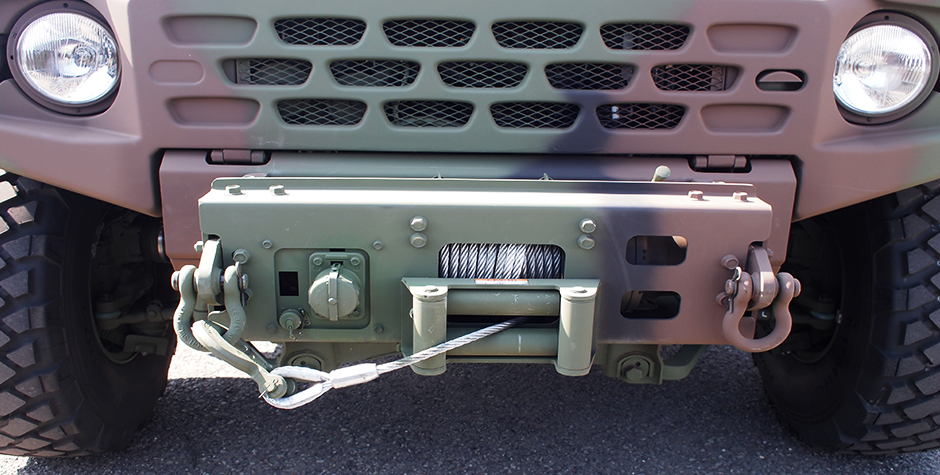

    • Winch(Opt.)

      When a vehicle becomes immobile due to obstacles or malfunction, it can be towed or tow itself out.

    • 8-Speed Automatic transmission

      Enhanced fuel economy, shift quality and driving performance with multi - speeds transmission.

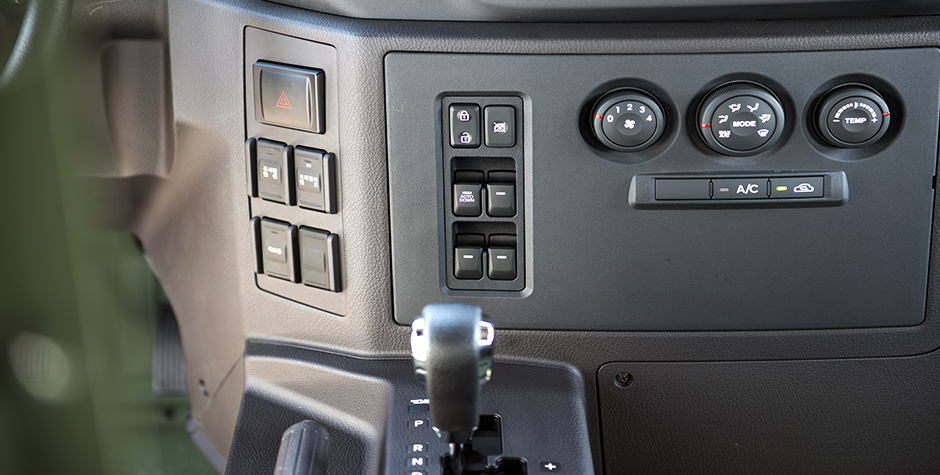

    • Air conditioner

      Provides a pleasant environment to riders all the time and secures visibility of a driver by defrosting the windshield.

    • All wheel drive (AWD)

      The all wheel drive function is applied for improving tracking and hauling power, steering capability and stability, and off-road driving power.

    • Rear-View Camera

      Enhancing safety and parking convenience in reversing.

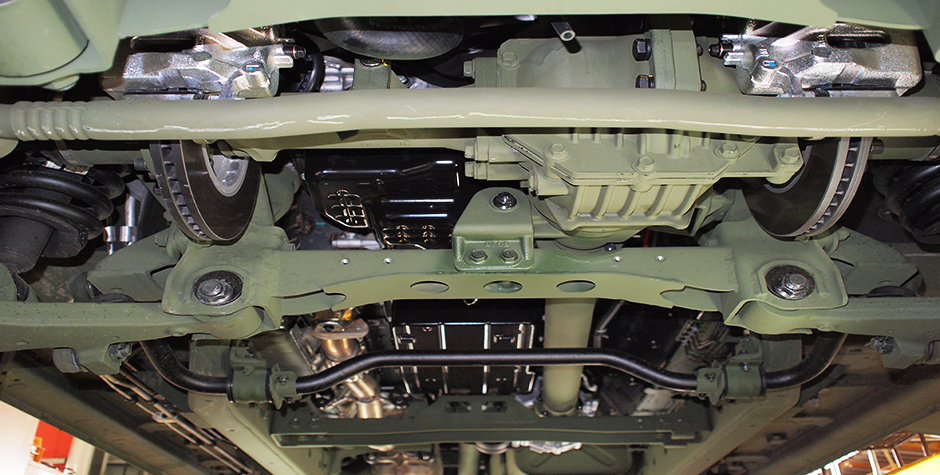

    • Independent suspension

      Ensuring superb riding comfort and stable maneuverability as 4 wheels are independently operated during driving on rough terrain, and exerting strong driving and braking power by enhancing the traction with the road surface.

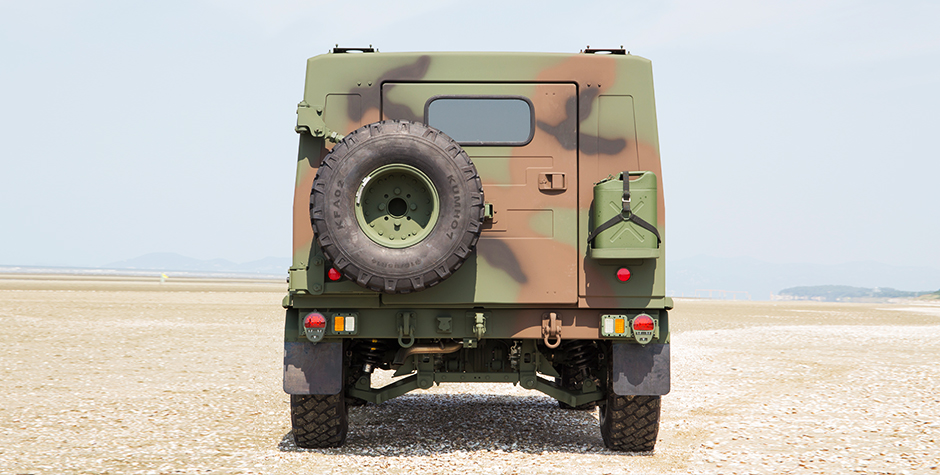

    • Rear van

      4 seat van with the rear door for the convenient getting on and off.
      3 point seat belt.

    • Hub reduction axle

      Raising the ground clearance of the body by applying the hub reduction portal axle, and enhancing the off-road driving capability on unpaved roads/rough terrains with additional reduction of the gear ratio for the increase of torque.

    • Power Window

      Convenience features to elevate the door automatically.

    • 4 channel ABS

      By judging the amount of slipping of wheels and controlling the brake pressure, maintaining the stability of the vehicle and shortening the braking distance.

    KLTV Series Cab Chassis Truck
    Type Technical Data
    Overall length mm 4,900
    Overall width mm 2,195
    Overall height mm 2,320
    Ground Clearance mm 410
    GVW kg 5,700
    Engine Power ps@rpm 225@3,200
    Engine Torque kg·m@rpm 51@1,750
    Max. Speed km/h 130
    Gradient % 60
    Min Turning Radius m 7.8
    Fording Depth mm 760
    Cruising Range km 640
    * All information is subject to change without notice according to any further improvements or operational environments.
    * The new camouflage color of KLTV vehicles has been reflected as of 2019
