  • Kia developed its Light Tactical Vehicle with great mobility and high survivability that best suits a changed battle environment and efficient tactical operations based on its long-accumulated technology and infrastructure for commercial and military vehicles.

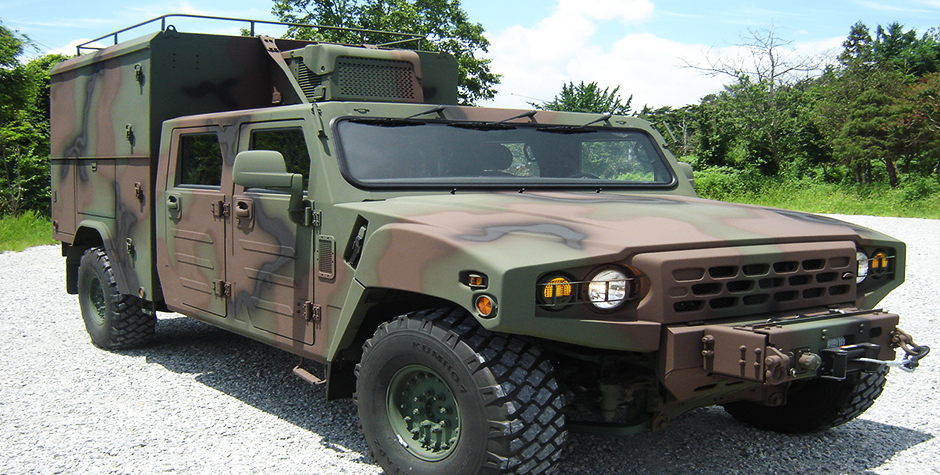

    This KLTV204 is a field shop van with outstanding mobility and wide variety of maintenance tools and spare parts.

    • 225-HP diesel engine

      A high-performance eco-friendly diesel engine which boasts strong horsepower and torque optimized for military purpose with its unyielding power, excellent fuel economy and super durability.

    • Air conditioner

      Provides a pleasant environment to riders all the time and secures visibility of a driver by defrosting the windshield.

    • 8-Speed Automatic transmission

      Enhanced fuel economy, shift quality and driving performance with multi - speeds transmission.

    • Rear-View Camera

      Enhancing safety and parking convenience in reversing.

    • All wheel drive (AWD)

      The all wheel drive function is applied for improving tracking and hauling power, steering capability and stability, and off-road driving power.

    • Power Window

      Convenience features to elevate the door automatically.

    • Independent suspension

      Ensuring superb riding comfort and stable maneuverability as 4 wheels are independently operated during driving on rough terrain, and exerting strong driving and braking power by enhancing the traction with the road surface.

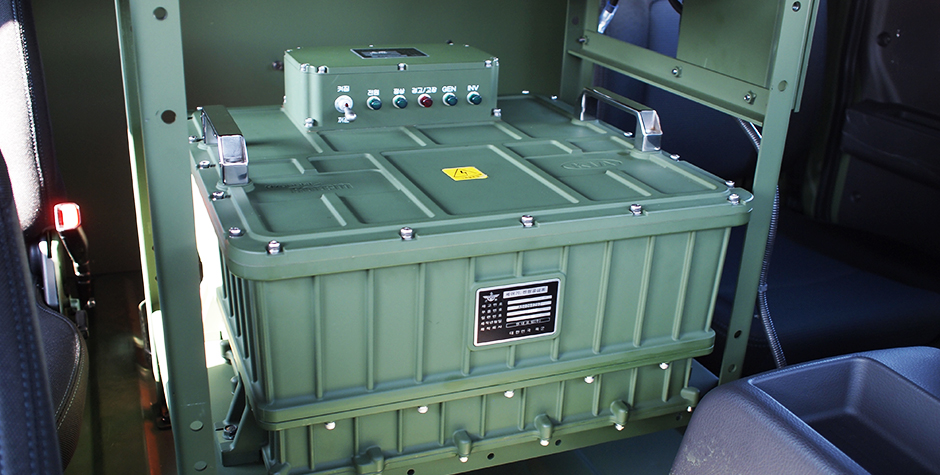

    • Hybrid generator(Opt.)

      Enhancing the operational efficiency by supplying power to the equipment through the power generation using the engine’s rotational force and also the power generation while driving or stopping.

    • Hub reduction axle

      Raising the ground clearance of the body by applying the hub reduction portal axle, and enhancing the off-road driving capability on unpaved roads/rough terrains with additional reduction of the gear ratio for the increase of torque.

    • Separable van body

      Steel structure of separated cab and van body.

    • 4 channel ABS

      By judging the amount of slipping of wheels and controlling the brake pressure, maintaining the stability of the vehicle and shortening the braking distance.

    • Winch(Opt.)

      When a vehicle becomes immobile due to obstacles or malfunction, it can be towed or tow itself out.

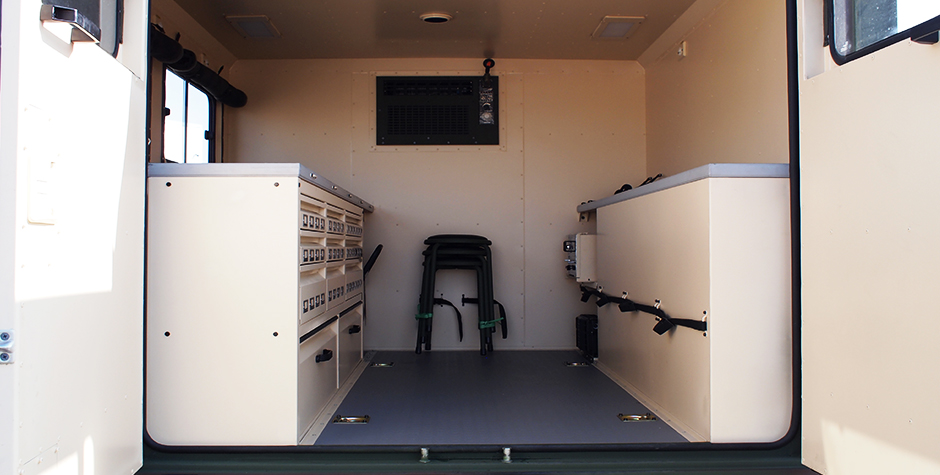

    • Indoor structure of van body for efficient serving

      AC power (AC 220V) and DC power (DC 24V) supplied for proxy servicing.
      Room lamps, fan, and Heating &apm; air conditioning equipment installed on the ceiling.
      Ladder installed for easy access.
      Toll box with locking device for keeping tools for servicing.
      Oxygen welding machine mounted.
      Worktable, parts box, tabletop tools (grinder, drill and vice) installed.
      Control box for controlling electric equipment.
      Chairs, personal gadgets, and rifles for three service engineer soliers.

    KLTV Series Shop Van
    Type Technical Data
    Overall length mm 5,950
    Overall width mm 2,195
    Overall height mm 2,750
    Ground Clearance mm 410
    GVW kg 7,000
    Engine Power ps@rpm 225@3,200
    Engine Torque kg·m@rpm 51@1,750
    Max. Speed km/h 130
    Gradient % 60
    Min Turning Radius m 9.2
    Fording Depth mm 760
    Cruising Range km 560
    * All information is subject to change without notice according to any further improvements or operational environments.
    • * The new camouflage color of KLTV vehicles has been reflected as of 2019
