KM500 Series

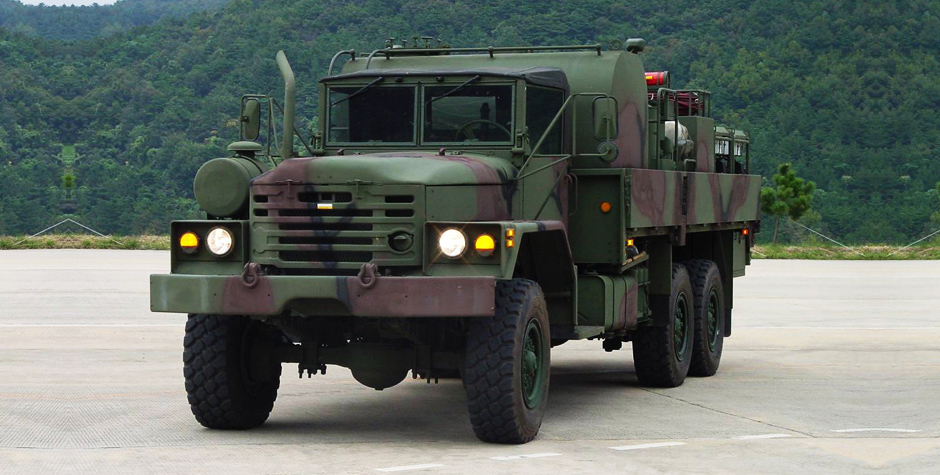

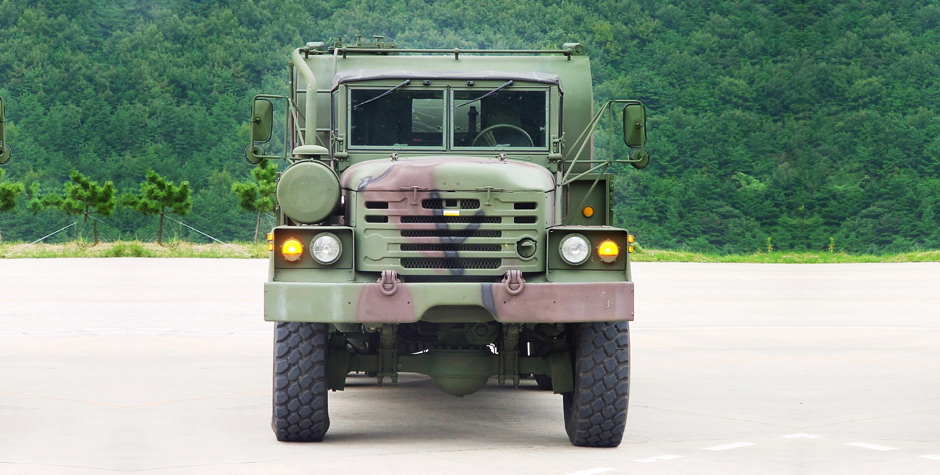

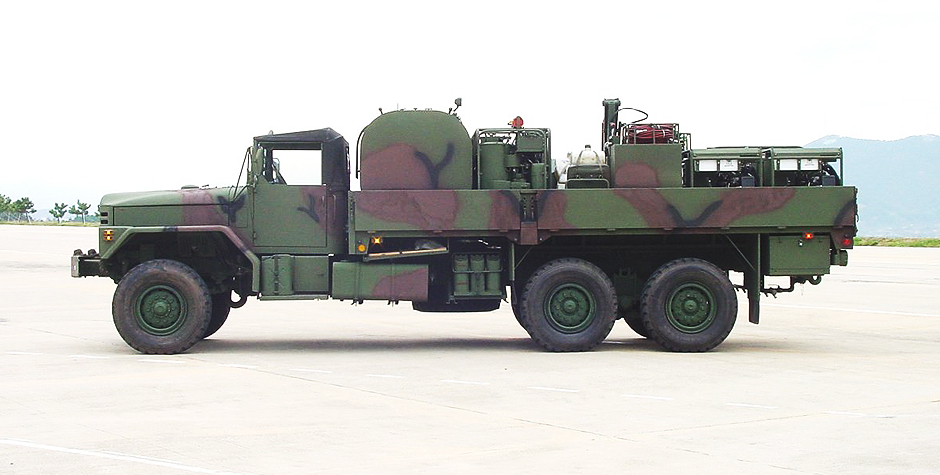

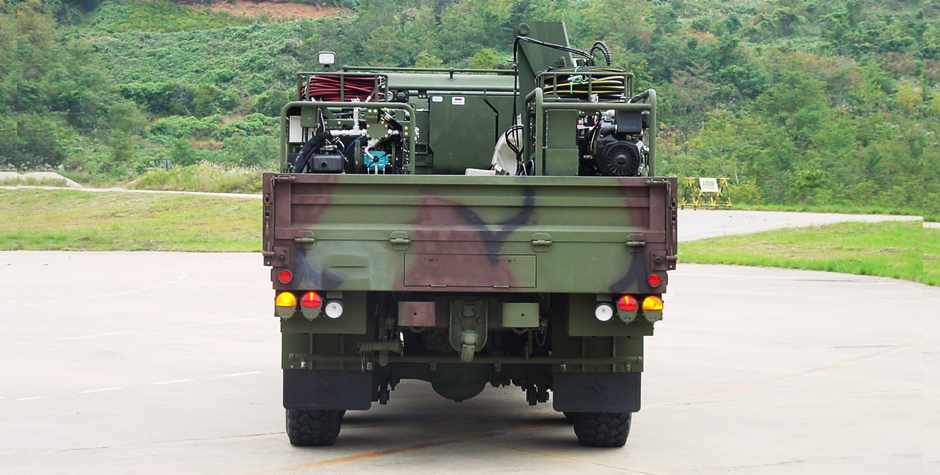

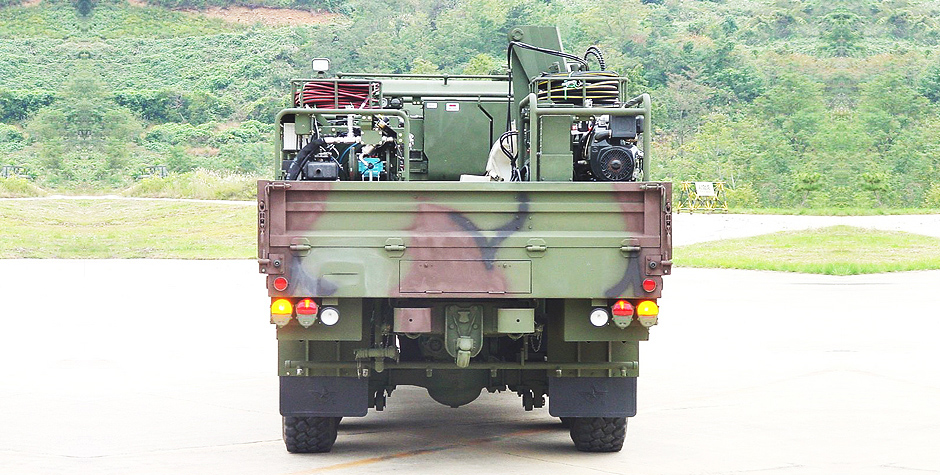

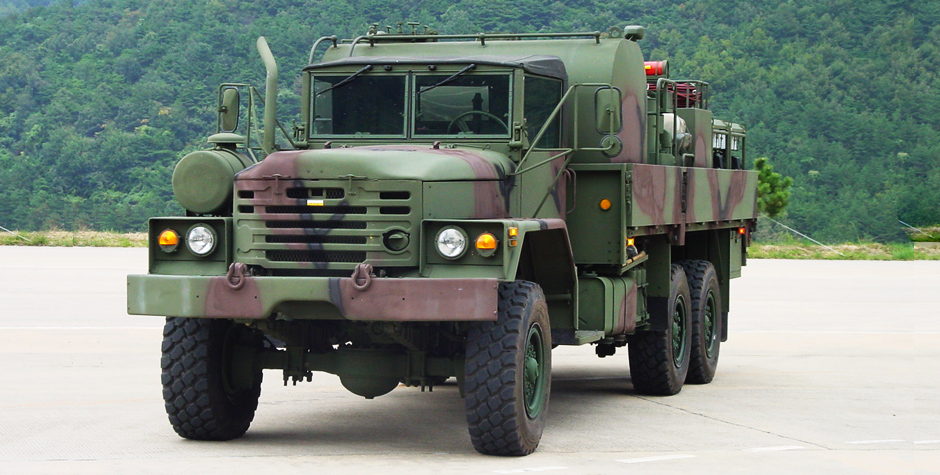

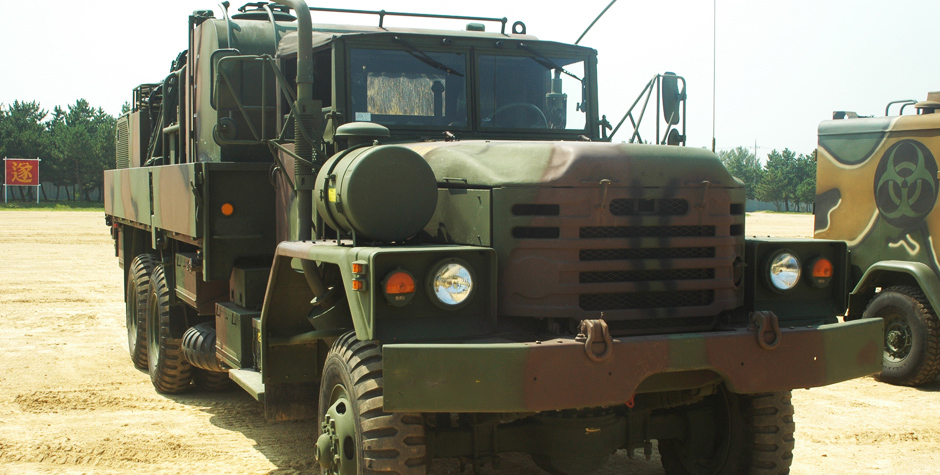

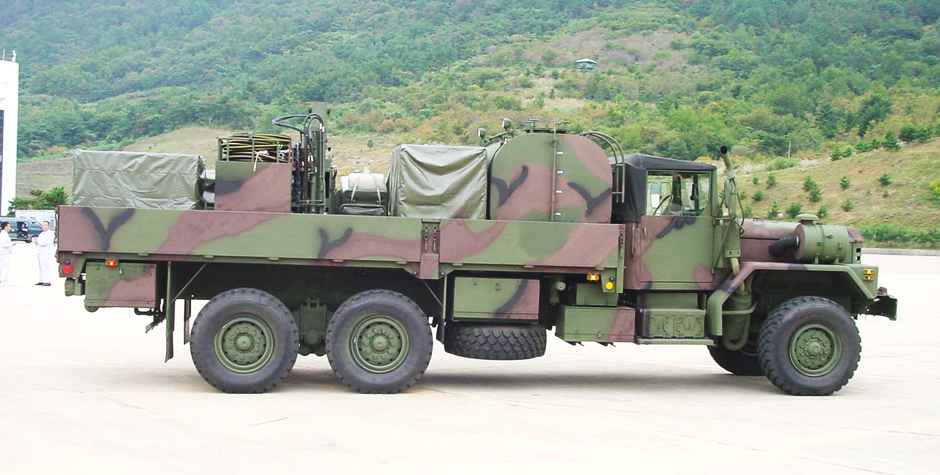

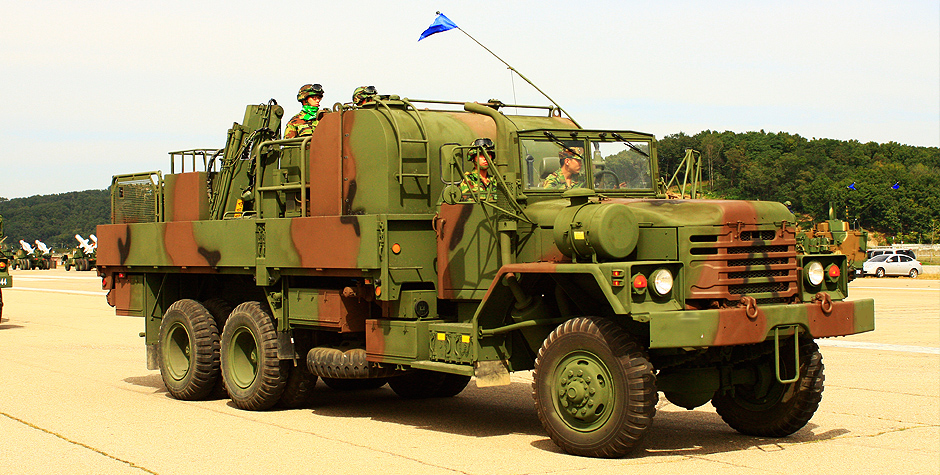

Decontamination VehicleThis vehicle is for precise decontamination of the human body; system and area with deck space and structural strength for mounting fixed water tank, crane, pump, boiler for water tank heating, decontamination system, poison neutralizing agent, and auxiliary systems. Modified 5-ton vehicle with improved capability compared with 2-1/2 ton decontamination vehicle.
FEATURES
-

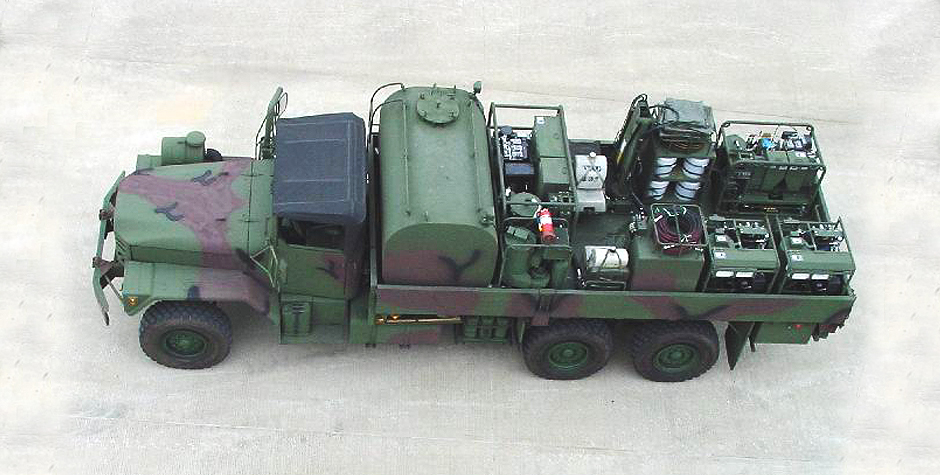

Deck
Deck space and structural strength for mounting a fixed water tank, crane, pump, a boiler for a water tank heating, a decontamination system, a poison neutralizing agent, and auxiliary systems.
-
Fixed water tank on vehicle
Fixed water tank on vehicle of double-wall insulation structure that is capable of storing 2,500 liters and of heating water by making use of the boiler for heating the water tank.
-
Fixed water tank on vehicle
The crane is operated by a motor and hydraulic force. It has booms that can expand up to three levels. It is mounted on top of the deck for the easy loading and unloading of cargo.
-
Pump
Equipment necessary for supplying water to fixed water tank on vehicle or patched water tank; runs on gasoline ; detachable.
-
Boiler for heating the water tank
Consists of a burner, heat exchanger, controller, frame, and electric system for heating water in the fixed water tank that is on the vehicle.
-
Pre-and post-treatment system
Consists of an air-cooling diesel engine, pump, control box, boiler, generator, battery and frame. It is detachable.
-
Main processing system for equipment
Consists of an air-cooling diesel engine, pump, control box, generator, battery, powder injector, mixer, and frame. It has a hopper capacity for storing powdered poison neutralizing agents for operations in sequence from 1 to 5
-
Main processing system for area
Consists of an air-cooling diesel engine, pump, control box, generator, battery, powder injector, mixer, and frame. It has a hopper capacity for storing powdered poison neutralizing agents for one operation.
-
Sprayer of area poison neutralizing agent
Mounted on the bottom rear of the vehicle.
-
Auxiliaray equipment
Field shower system of prefabricated structure with partitions; patch-type water tank installed with air injection mode; decontamination bag of patch type structure, fixed shower system of prefabricated structure mounted on the rear side of deck.
KM500 Series Decontamination Vehicle
Type | Technical Data | |
---|---|---|
Overall length | mm | 10,000 |
Overall width | mm | 3,000 |
Overall height | mm | 3,300 |
GVW | kg | 19,000 |
Max. Speed | km/h | 88 |
Max. Horsepower | ps@rpm | 270@2,200 |
Max. Torque | kg·m@rpm | 98@1,400 |
Gradeability | % | 60 |
Fording Depth | mm | 760 |
Ground Clearance | mm | 270 |
Min. Turning Radius | m | 14.5 |
Range | km | 600 |
Mounted equipment
Item | Special equipment | |
---|---|---|
Power | Power embedded in each equipment | |
Operators | 5 persons | |
Water tank | Type | Double tank insulation structure |
Capacity (ℓ) | 2,500 | |
Water supplier | Type | Self-absorptive centrifugal pump (independent operation) |
Vertical descending once-through boiler | 2,500 | |
Crane | Type | Motor-driven; expandable up to three level |
Maximum craning capability | 600 kg when the boom length is 4.1m |
Item | Decontamination capability | |
---|---|---|
Agitating mode of neutralizing agent | Continuous agitation | |
Features of neutralization | Decontamination of human body | Operates the human body decontamination chamber |
System neutralization | Operates the precision decontamination chamber | |
Area neutralization | Automatic spraying | |
Neutralizing agent | Decontamination of human body | Water + liquid detergent |
System neutralization | Emulsion | |
Area neutralization | Soluble agent | |
Capability of decontamination | Decontamination of human body | 144 persons/hour |
System neutralization | 2½ ton cargo 18 trucks/once | |
Area neutralization | 1,632 ㎡ | |
Generation of agent | System neutralization | 24 ℓ/min., continuous agitation |
Area neutralization | 280 ℓ/min., continuous agitation | |
Hot water supply | 5,000 ℓ/h (50℃) 1,600 ℓ/h (90℃) |
|
Steam supply | Wet steam | 800 ℓ/h (140℃) |
Dry steam | 800 ℓ/h (190℃) |
