Kia Medium Tactical Vehicle
The Kia Medium Tactical Vehicle (KMTV), developed through five years of dedicated R&D, marks a significant advancement in modern military logistics. Designed for rapid deployment and efficient supply in 21st-century combat, it offers high-performance power, advanced safety, and spacious cargo capacity on a military-grade chassis. With exceptional off-road mobility and survivability, the KMTV adapts to diverse operational needs, reinforcing Kia’s commitment to enhancing military technology and readiness.
KMTV Development Concept
KMTV is a next-generation tactical vehicle at the global level, which was developed by applying the military requirement specifications and optimized specifications for its use, that will replace the deteriorated current 2½ton and 5ton vehicles. AWD feature (4X4, 6X6) with an additional AWS system (All Wheel Steering) to improve the turning mobility in harsh and narrow combat situations and a vehicle height controlling device are additionally installed to improve the convenience when getting on/off the vehicle and loading/unloading cargos. KMTV is available in the new 2½ton Cargo Truck (4X4) and new 5ton Cargo Truck (6X6), which are optimized for troop/supply transport through increased field load weight and twice the paved road loading capacity than the current models, as well as the 5ton Bulletproof Truck (6X6) with detachable bulletproof material for the vehicle body and structure that allows easy weapon installation.
CutAdvanced Performance Dynamics
KMTV is equipped with maximum 380hp of cutting-edge engine, 8-speed automatic transmission, and power line on axle, and this optimum combination offers fast and powerful driving performance and the best climbing performance on mountain terrains and streams.
Ballistic Performance Test
Latest Euro5 Diesel Engine – KMTV 4X4 Engine Displacement: 6,798 cc Max.Power: 280 ps Max.Torque: 100 kgf·m Max.Speed: 110 km/h
Displacement
6,798 cc
Max.Power
280 ps
Max.Torque
100 kgf·m
Max.Speed
110 km/h
High efficiency/High HP Euro5 Diesel Engine – KMTV 6X6 Engine Displacement: 6,798 cc Max.Power: 330 ps Max.Torque: 125 kgf·m Max.Speed: 105 km/h
Displacement
6,798 cc
Max.Power
330 ps
Max.Torque
125 kgf·m
Max.Speed
105 km/h

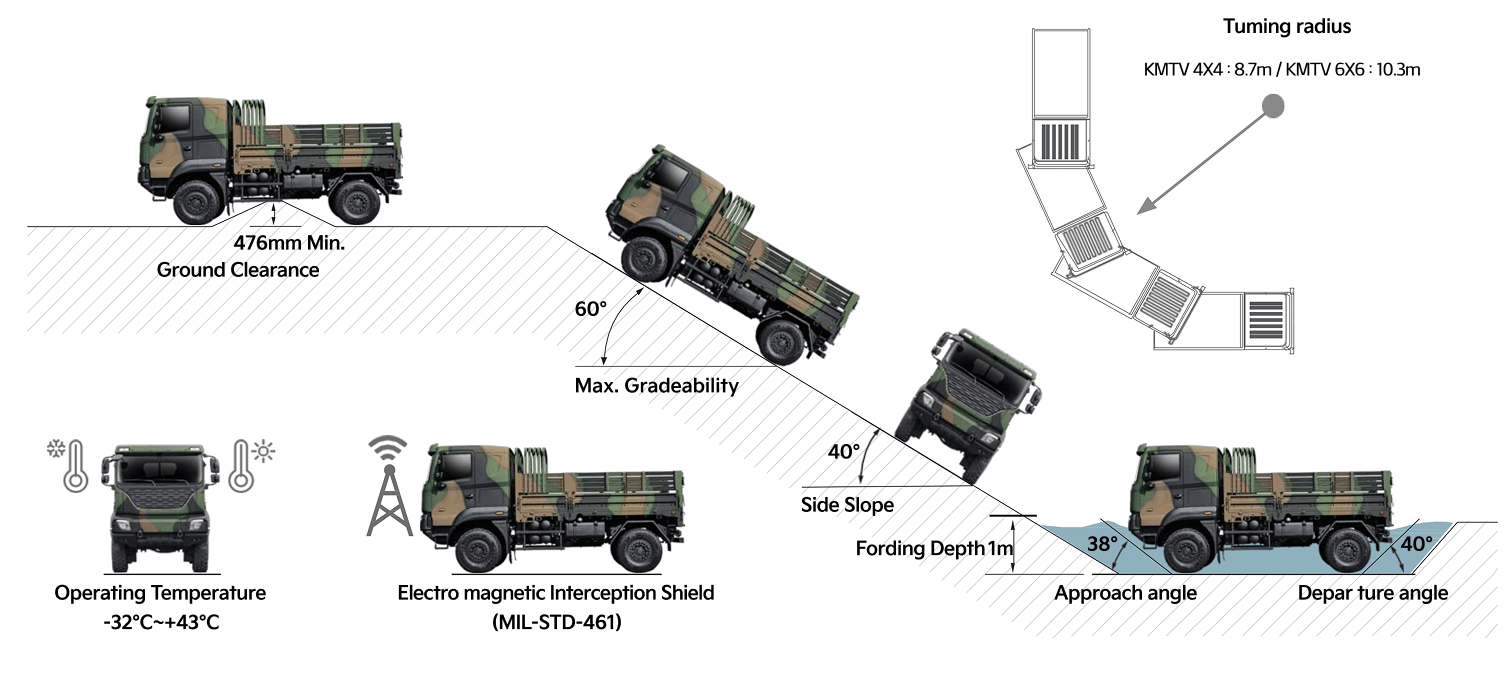

Resilient performance in tough terrains
With the top-class driving performance and durability, KMTV can conduct operations with maximum 22 passengers and 5 tons of load (in the field) on steep mountain slopes, narrow mountainous paths, and while fording. By demonstrating prompt mobility and outstanding transport ability on all types of terrains in the world and under any operational conditions, it offers the perfect solutions of medium tactical vehicles that the military requires.
Harsh Performance Test
Kia validates military vehicle specifications through comprehensive performance testing, employing state-certified facilities and expert personnel. Utilizing advanced equipment and simulated combat-like conditions, Kia assesses critical parameters including mobility, durability, and operational performance to ensure exceptional quality and reliability.
Forward/Reverse Climbing on Longitudinal Slope
Fording Mobility
Minimum ground clearance
Forward/Reverse Driving on Cross Slope
Unstoppable Mobility
Part-time AWD system demonstrates the optimum driving performance on mountain slopes and narrow roads, and the 4-channel ABS brings braking safety. In addition, CTIS (central tire inflation system) can be used on sand or soft ground for easy escape, and run flat tires enable the vehicle to drive 48km at 48km speed even after tire damage. When you want to drive, when you want to stop, nothing can stop you.
Part-time AWD System
CTIS (Central Tire Inflation System) Optional
ABS + ASR
Run flat tactical tire_optional
Exterior design
Overwhelming and robust design A sturdy cab-over type design that provides the optimal front/side views with grand shield-like grill, strong bumper, and high-stiffness frame that are structurally solid and can conquer any type of terrain.Highly durable LED daytime running light and head lamp
Windshield wipers with built-in spray nozzle
High-stiffness front skid plate that can climb up 60% longitudinal angle
Front/rear detachable cargo box side gate that can open/close easily
1Highly durable LED daytime running light and head lamp
2Windshield wipers with built-in spray nozzle
3High-stiffness front skid plate that can climb up 60% longitudinal angle
4Front/rear detachable cargo box side gate that can open/close easily
Interior design
Optimized Interior Configuration Featuring an expansive front view and an ergonomically engineered interface, the interior ensures intuitive, precise control across diverse terrains. Advanced multi-function seating and generous cabin space create an optimal environment for personnel to focus on mission-critical tasks.Commercial vehicle-based convenient switch arrangement
Electronic 8-speed auto transmission
Centralized cluster
Around view
1Commercial vehicle-based convenient switch arrangement
2Electronic 8-speed auto transmission
3Centralized cluster
4Around view
Specification
| Type | 6×6 Cargo Truck | 6×6 Bulletproof Cargo Truck | 4×4 Cargo Truck | ||
|---|---|---|---|---|---|
| Specifications | Overall Length | mm | 7,900 or less | 7,900 or less | 6,800 or less |
| Overall Width | mm | 2,500 or less | 2,500 or less | 2,500 or less | |
| Overall Height | mm | 3,150 or less | 3,150 or less | 3,150 or less | |
| Ground Clearance | mm | 420 | 420 | 410 | |
| Weight | Payload Capacity | Kg | ~21,000 | ~21,000 | ~15,000 |
| GVW (Gross Vehicle Weight) | Kg | ~21,000 | ~21,000 | ~15,000 | |
| Performance | Approach Angle | ° | 38 | 38 | 38 |
| Departure Angle | ° | 40 | 40 | 40 | |
| Minimum Turning Radius | m | 10.6 | 10.6 | 8.7 | |
| Maximum Speed | km/h | 105 | 105 | 115 | |
| Cruising Range | km | 1,200 | 1,200 | 900 | |
| Longitudinal Gradeability | % | 60 | 60 | 60 | |
| Lateral Gradeability | % | 40 | 40 | 40 | |
| Fording Depth | mm | 1,000 | 1,000 | 1,000 | |
| Engine | Maximum Power Output | PS | 330 | 330 | 280 |
| Maximum Torque | kgf.m | 125 | 125 | 100 | |
| Power Supply | V | 24 | 24 | 24 | |
| Emissions | - | Euro5 | Euro5 | Euro5 | |
| Fuel Tank Capacity | ℓ | 300 or less | 300 or less | 300 or less | |
Product Lineup
6×6
6×6 Cargo Truck
6×6 Bulletproof Cargo Truck
4×4
4×4 Cargo Truck
