The Structural Backbone of
Precision Engineered Mobility Solutions
A bare chassis is the fundamental vehicle structure comprising the frame, engine, and drivetrain, excluding the body or auxiliary equipment. It functions as a versatile platform for customized vehicles designed to meet specific operational requirements.Our robust chassis accommodate both military and commercial applications with reliability. We deliver premium, customizable platforms enabling efficient and mission-focused vehicle solutions.
“One Platform, Infinite Possibilities”
Designed for maximum adaptability, our chassis platform supports a wide range of mission-specific and industry-driven builds. From tactical mobility to specialized commercial needs, we deliver the foundation for next-generation vehicle solutions.

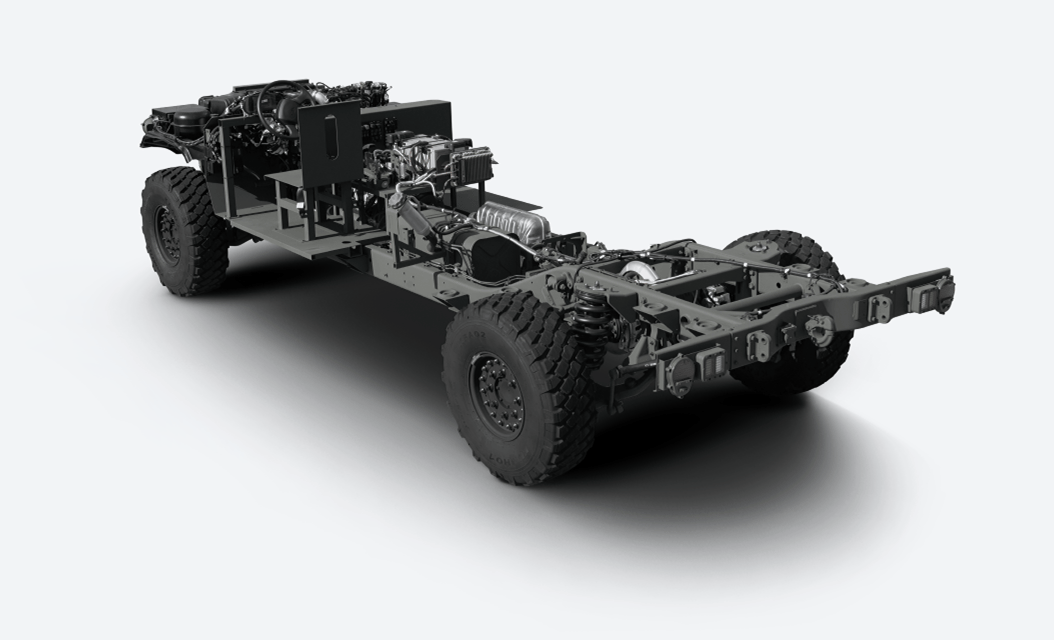

Light Class Bare Chassis
Vehicles for global operations such as peacekeeping missions are required for various specific and demanding standards. Our customers definitely need a reliable automotive platform, and Kia LTV chassis provides the ideal basic structures for various add-on super structure modules.
As one of the leading global automaker in quality and reliability, Kia is a trustworthy partner, providing various packages including individual customer care and satisfaction.
| Specification Base | Light Tactical Vehicle | |||
|---|---|---|---|---|

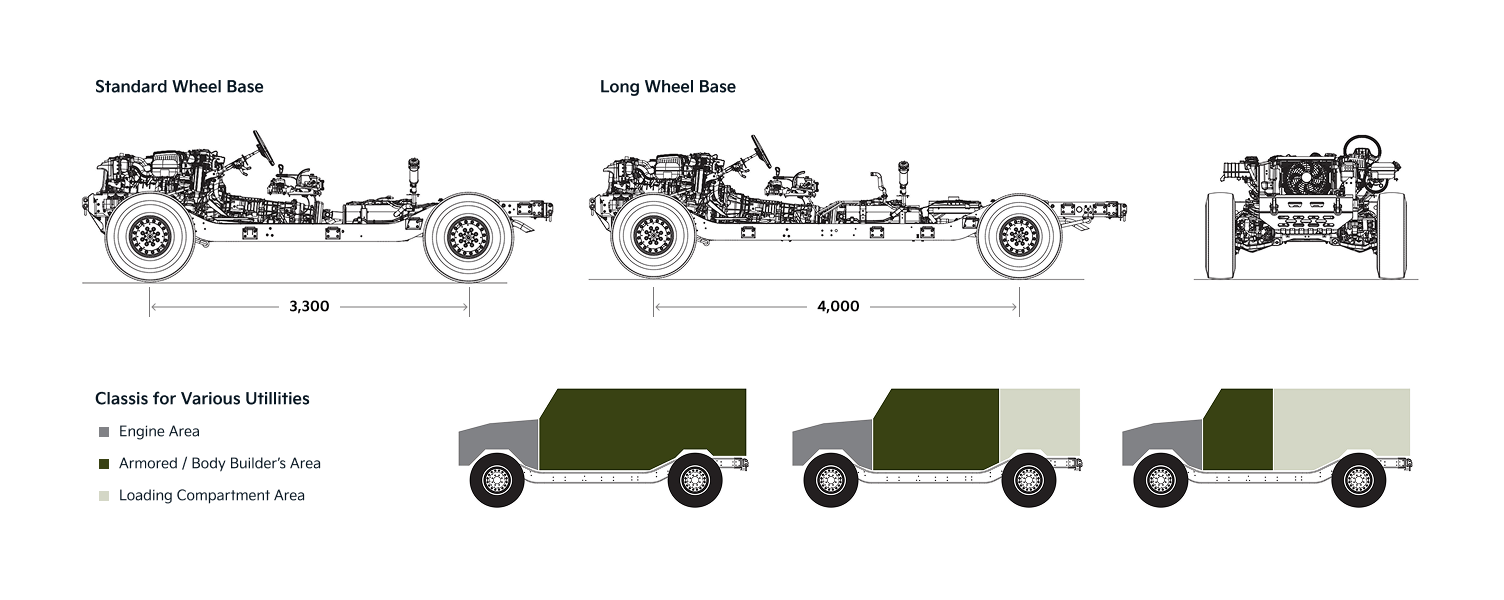

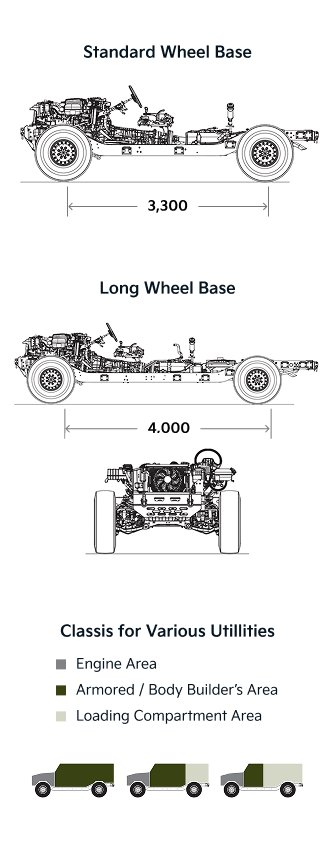

| Bare Chassis (Short Wheelbase) | Bare Chassis (Long Wheelbase) | |||
| Specifications | Overall Length | mm | 4,875 | 5,514 |
| Overall Width | mm | 2,161 | 2,194 | |
| Overall Height | mm | 1,565 | 1,565 | |
| Ground Clearance | mm | 480 | 480 | |
| Weight | GVW | Kg | 5,700 | 7,000 |
| Performance | Minimum Turning Radius | m | 7.8 | 9.2 |
| Maximum Speed | km/h | 130 | 130 | |
| Cruising Range | km | 570 | 520 | |
| Gradeability | % | 60 | 60 | |
| Side Slope Capability | % | 40 | 20 | |
| Fording Depth | mm | 760 | 760 | |
| Engine | Maximum Power Output | PS | 225 | 225 |
| Maximum Torque | kgf.m | 51 | 51 | |
| Power Supply | V | 24 | 24 | |
| Specifications | Emissions | Euro5 | Euro5 | |
| Fuel | Fuel Tank | Ɩ | Under 80 | Under 80 |

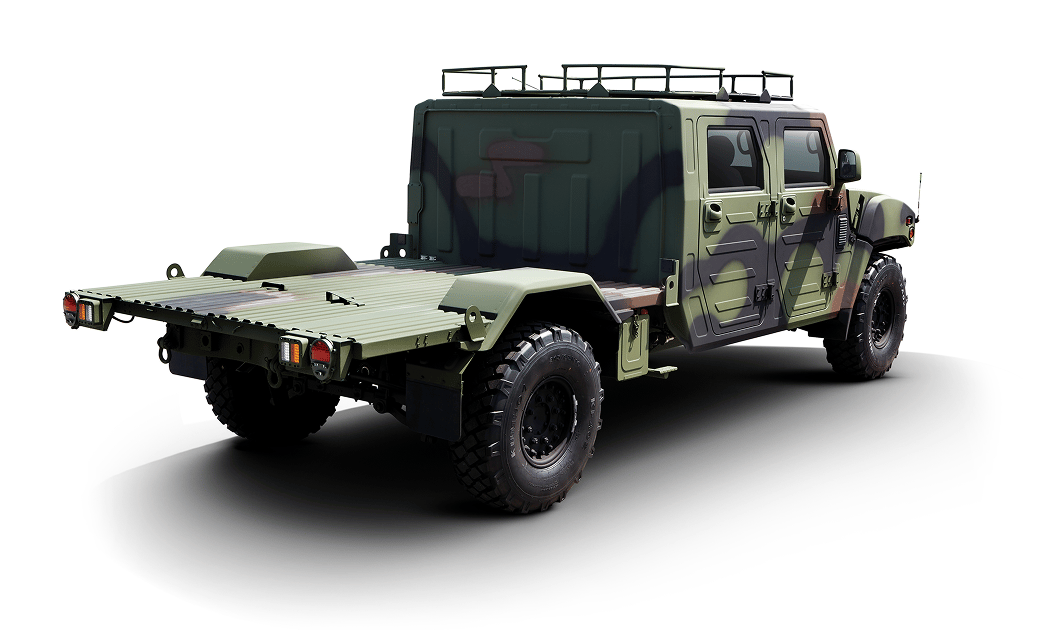

Light Class Cab Chassis
Unprecedented Utility & Reliability
The basic chassis has been modularized so that various options are made available including bullet resistance/non-bullet resistance, standard/long wheel base and installation of special components. Its tactical usage has been maximized by enabling diverse tactical equipment loadings such as IT and high-tech guided weaponry and reconnaissance/observation equipment.

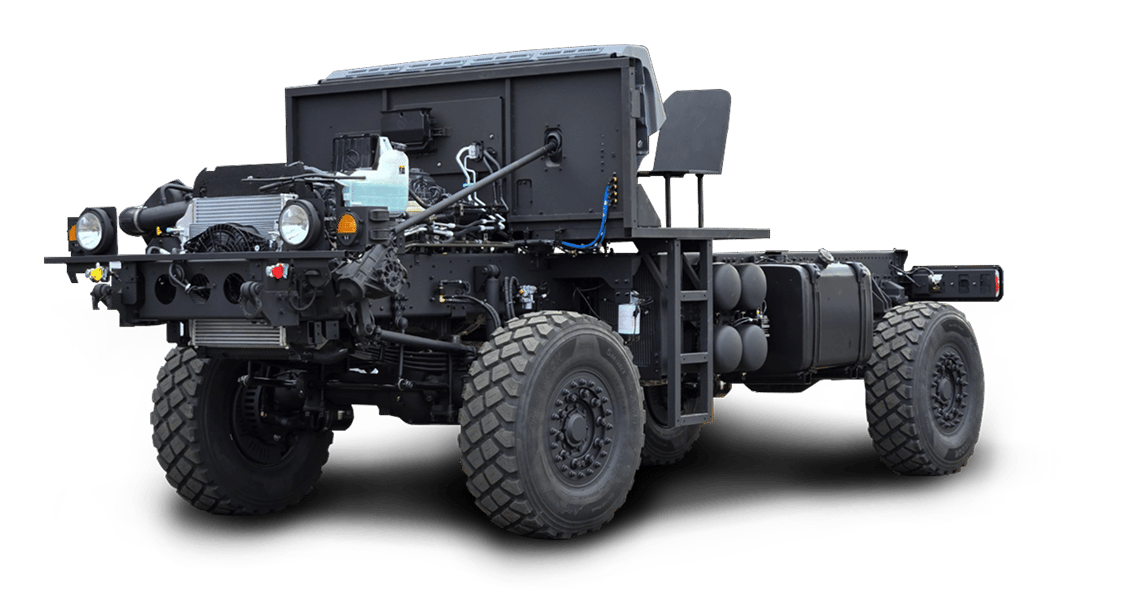

Medium Class Bare Chassis(4X4)
Built on a versatile 4X4 platform, the Bonnet-type offers exceptional flexibility by allowing customized structures or equipment to be freely mounted according to diverse requirements and specifications
| Specifications | Overall Length | mm | 6,536 |
|---|---|---|---|
| Overall Width | mm | 2,466 | |
| Overall Height | mm | 2,392 | |
| Ground Clearance | mm | 490 | |
| Weight | GVW (Gross Vehicle Weight) | Kg | - |
| Performance | Approach Angle | ° | 41 |
| Departure Angle | ° | 43 | |
| Minimum Turning Radius | m | 8.7 | |
| Maximum Speed | km/h | 115 | |
| Cruising Range | km/h | 900 | |
| Longitudinal Gradeability | % | 60 | |
| Lateral Gradeability | % | 40 | |
| Fording Depth | mm | 1,000 | |
| Engine | Maximum Power Output | PS | 330 |
| Maximum Torque | kgf.m | 125 | |
| Power Supply | V | 24 | |
| Emissions | Ɩ | 300 or less | |
| Fuel Tank Capacity | - | Euro5 |
Medium Class Cab Chassis
-

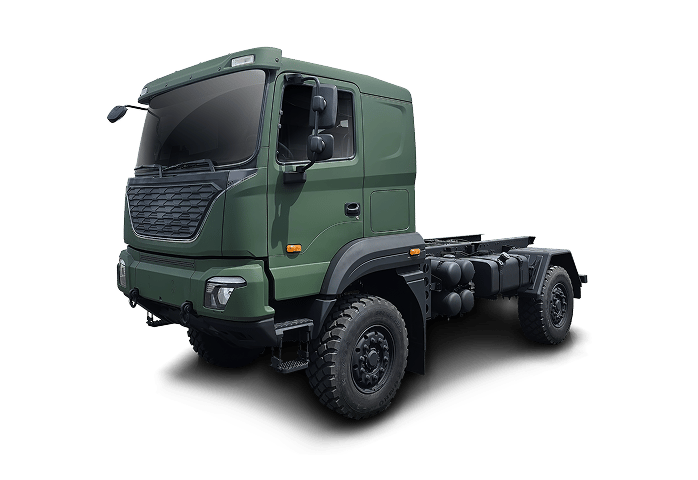

4x4
-

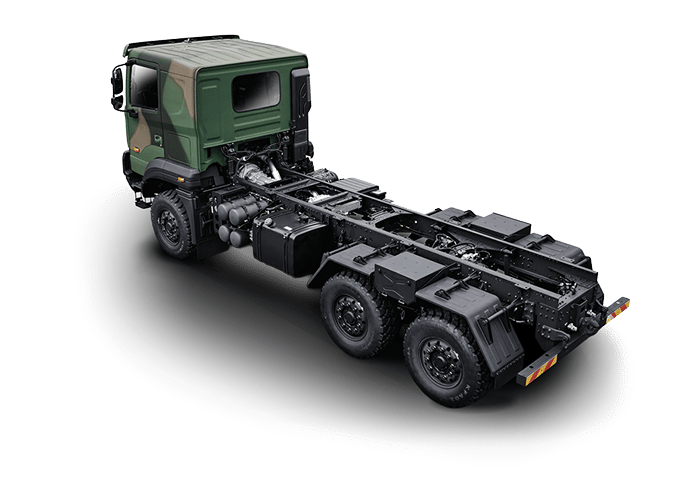

6x6
A cab-over platform featuring superior performance in driving dynamics, collision safety, fuel efficiency, power delivery, and chassis durability
Employing an extended wheelbase chassis module with superior durability construction, it ensures enhanced stability through even load distribution, while its 6X6 drive system provides exceptional maneuverability for diverse military operations
Integrated driver's seat and basic frame structure for efficient production across diverse vehicles with enhanced compatibility through standardized commercial-grade instrumentation, climate control systems, and interchangeable components
