KLTV Series

"A modular light tactical platform delivering mission-ready mobility, adaptability, and combat performance."

Great Mobility, High Protection and Flexible LTV

Kia developed its Light Tactical Vehicle that best suits a changed battle environment and efficient operation of military strength based on its long-accumulated technology and infrastructure involved in commercial and military vehicles. Built upon its robust design with practicality, mobility and survivability, the Light Tactical Vehicle is developed by the modularization of its basic chassis, diversifying into various derivative models with standard and long wheel base along with weapon mounts.

Strong Driving Performance on Any Terrains!

Kia’ high-tech military vehicles with the best driving performance and durability in any operating environment have been developed under diverse simulated conditions–both mountain and river and also under extremities of weather. That is why the vehicles can exert superb mobility on any challenging terrains worldwide and under any types of climate conditions.

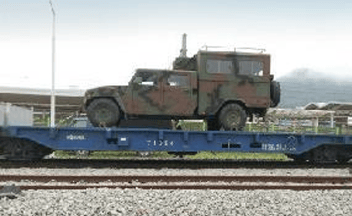

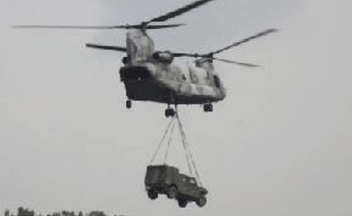

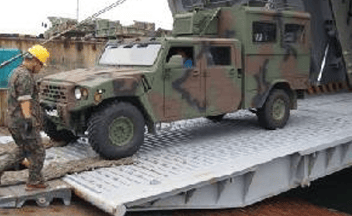

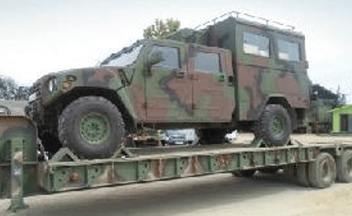

Transportability

Performance Test

Kia, as a global leading automaker, takes advantage of its specialized workforce and equipment in diverse technical areas in order to implement the best testing conditions for mobility, environmental adaptability and durability required for military vehicles throughout the testing processes that enables identical simulation of an actual operation field

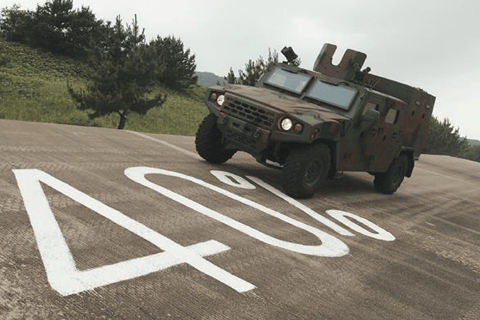

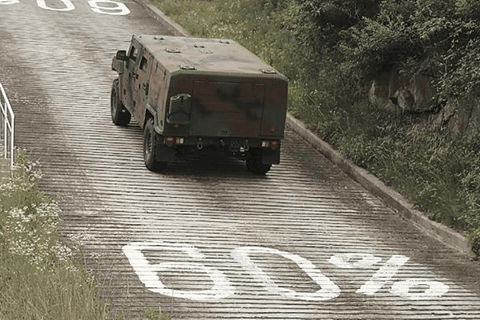

Gradeability
Side Slope

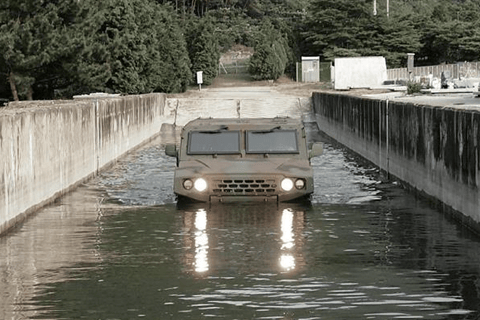

Fording Depth

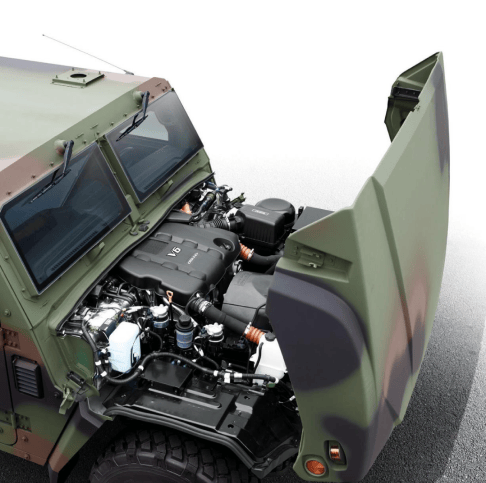

Powertrain & Chassis

Cutting-Edge Technology & Functionality

The Light Tactical Vehicle carries its high-output eco-friendly S2 engine with 8-speed automatic transmission, boasting 225ps considered the highest among its overseas counterparts with securement of the best mobility even under the worst terrain conditions. It was developed to satisfy various performance requirements even under the condition of maximum weight of seven tons, offering a perfect solution for mobility.

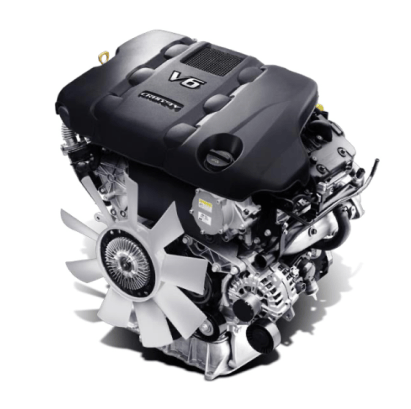

Engine Specification
Type	V6 Diesel
Displacement (cc)	2,959
Max. Power (ps / rpm)	225 / 3,200
Max. Torque (kgf.m / rpm)	51 / 1,750
Emission	Euro-5 (DPF/EGR) DPF (Diesel Particulate Filter) EGR (Exhaust Gas Recirculation)

* Military-Optimized Features
• EMI shielding, cold engine start, lubricating performance, waterproofing feature, 24V generator, etc

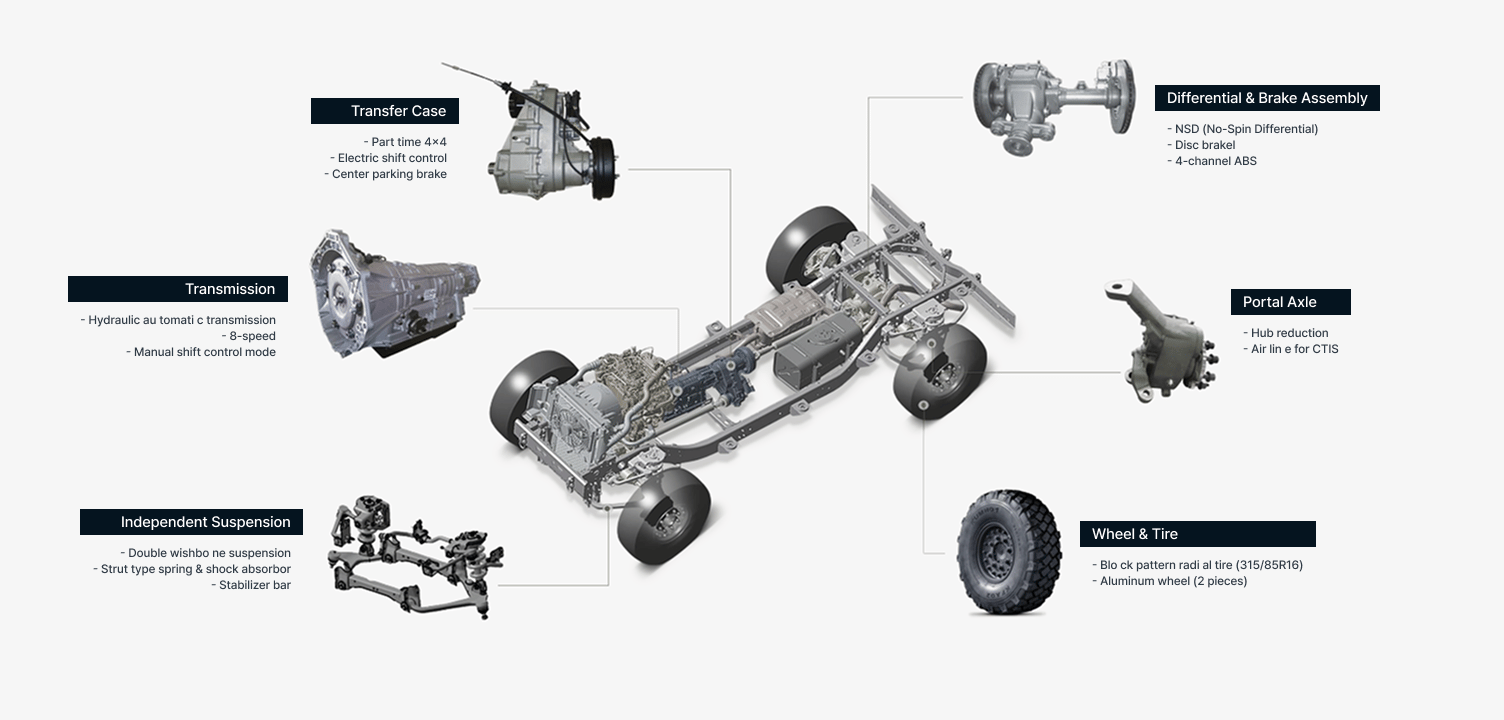

Transfer Case : Part time 4x4, Electric shift control, Center parking brake / Differential & Brake Assembly : NSD (No-Spin Differential), Disc brakel, 4-channel ABS / Transmission :Hydraulic automatic transmission, 8-speed, Manual shift control mode / Portal Axle : Hub reduction, Air lin e for CTIS, Independent Suspension : Double wishbo ne suspension, Strut type spring & shock absorbor, Stabilizer bar / Wheel & Tire : Blo ck pattern radi al tire (315/85R16), Aluminum wheel (2 pieces)

Protection

Strength on Your Side

The detachable protection kit protects passengers from fire arms, shells and land mines. With its convenience function of both detachment and attachment of the kit, it enhances the tactical operation-ability. Furthermore, it provides adjustment function of the protection level, providing appropriate countermeasures for users’ needs.

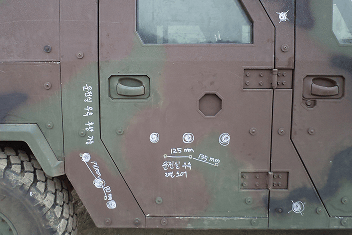

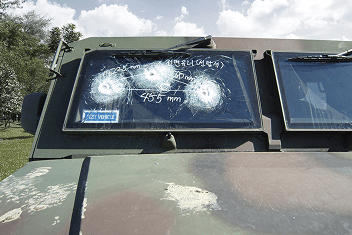

Ballistic Performance Test

Front Glass

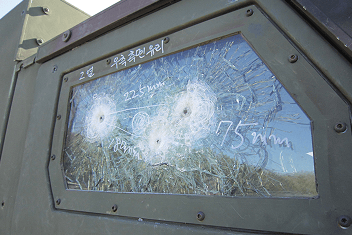

Side Door Glass
Bulletproof Composite Panel
Bulletproof Composite Panel (Inner side)

Up- Armored Vehicle

Gunner Protector
Bulletproof Glass

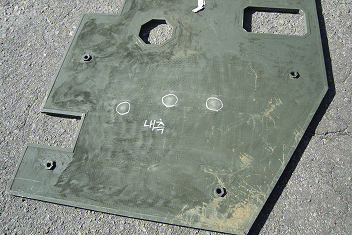

Mine Protector - Floor
Composite Material
Blast-Absorbing Seats

Additional Features

Unsurpassed Flexibility & Affordability

The Light Tactical Vehicle provides various standard and optional features to satisfy the required performance for any type of usage or environment,
while showcasing its robust and militant image

Central Tire Inflation System (CTIS)

Electronic inner-tire air pressure control system ensures enhanced driving performance on sandy and soft terrains

Electric Winch

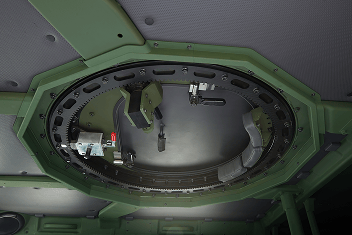

Turret System

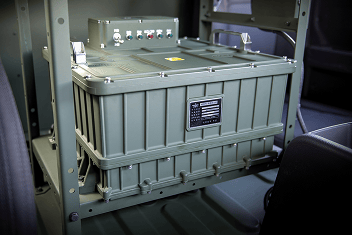

10kW Generator in Powertrain
10kW Generator in Powertrain

Run-Flat Tires (3 piece divided)

Keeping the operational condition of tire when bullets hit tire, and making it possible to drive 48km at the speed of 48km/h

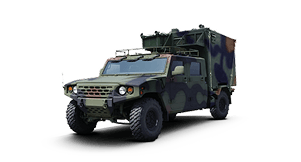

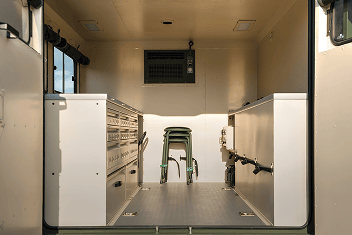

Rear Van - Special Equipment

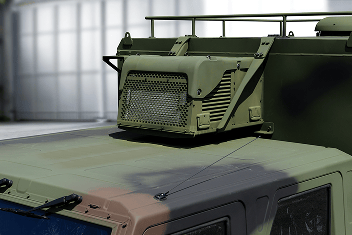

Air Conditioner - Van

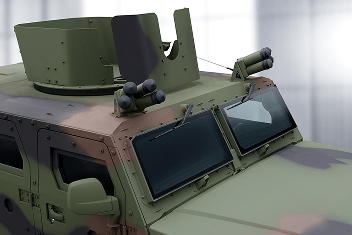

Smoke Grenade Launcher System

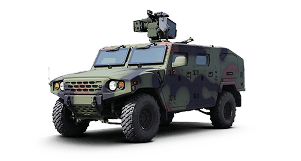

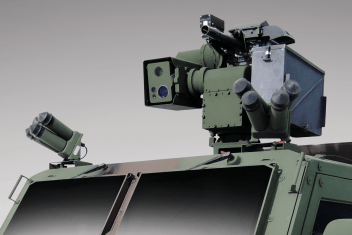

Remote Control Weapon System

Exterior design

Its exterior design captures the high-tech image of Light Tactical Vehicle, displaying robust and stable along with strong edge lines both vertical and horizontal.

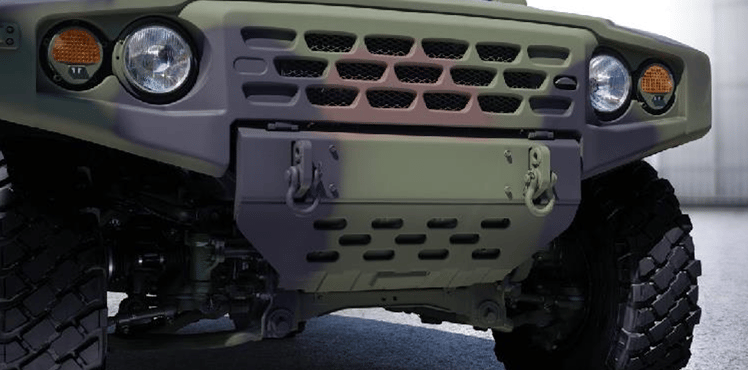

Front Bumper & Lamps

Front combination lamp, towing hook & undercover

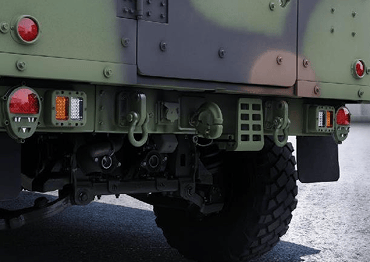

Rear Bumper & Attachments

Rear combination lamp, towing hook, pintle hook, receptacle & rear-view camera
Armored Cabin

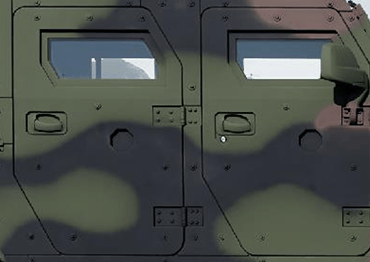

Detachable bullet resistant plate

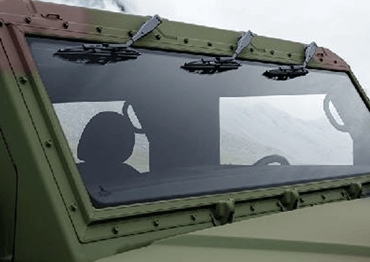

Windshield

Removable with projection type windshield

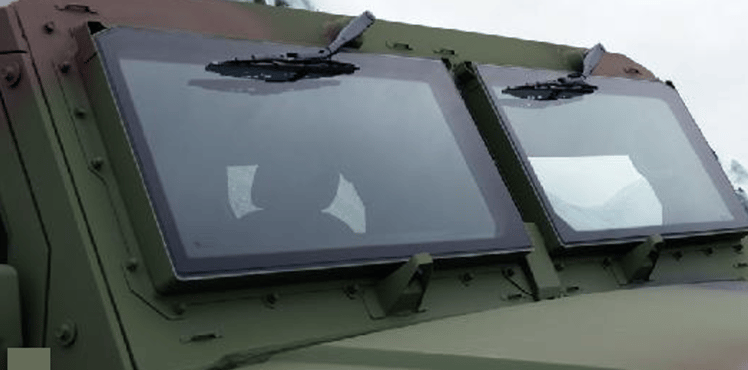

Bulletproof Windshield

2 piece glasses with defrosting heat film
Standard Cabin

1
Front Bumper & Lamps

Front combination lamp, towing hook & undercover
2
Rear Bumper & Attachments

Rear combination lamp, towing hook, pintle hook, receptacle & rear-view camera
3
Armored Cabin

Detachable bullet resistant plate
4
Windshield

Removable with projection type windshield
5
Bulletproof Windshield

2 piece glasses with defrosting heat film
6
Standard Cabin

Interior design

Its interior design emphasizes simplicity with straight lines, securing both ease of operation and visibility of a passenger car with the reflection of the optimized driver-oriented design.

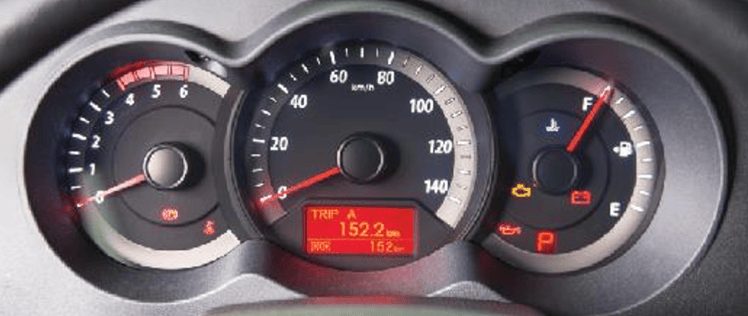

Gauge Cluster

Centralized instrument panel & multi-info display

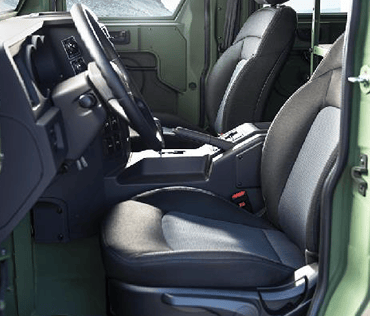

Driver & Commander Seat

Sliding, reclining & height adjustment, head rest & seat belt

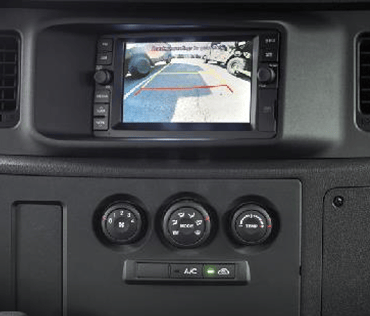

Center Fascia

Audio, navigation, rear-view monitor & HVAC control

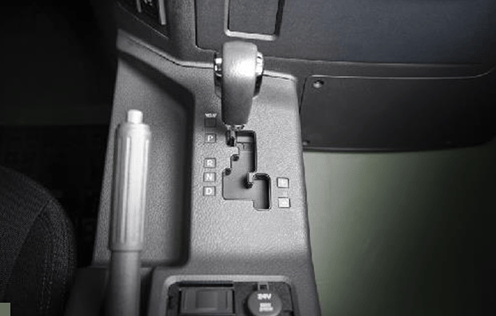

Transmission Lever

Auto shift knob and parking brake lever 24V outlet & AUX port (iPod, MP3)

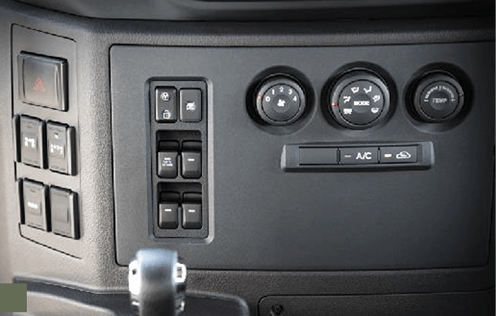

Control Switches

Auto door lock, power window, rear-view defroster mirror

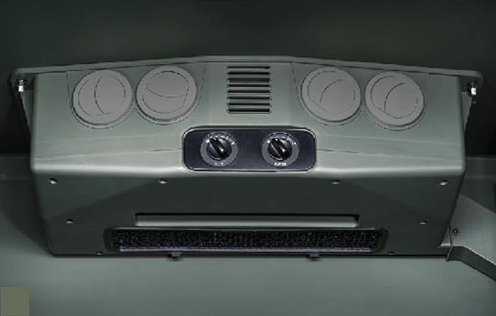

Air Conditioning Systems

Aircon & heater for rear van

1
Gauge Cluster

Centralized instrument panel & multi-info display
2
Driver & Commander Seat

Sliding, reclining & height adjustment, head rest & seat belt
3
Center Fascia

Audio, navigation, rear-view monitor & HVAC control
4
Transmission Lever

Auto shift knob and parking brake lever 24V outlet & AUX port (iPod, MP3)
5
Control Switches

Auto door lock, power window, rear-view defroster mirror
6
Air Conditioning Systems

Aircon & heater for rear van

Specification

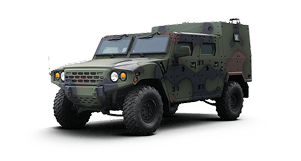

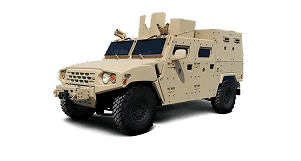

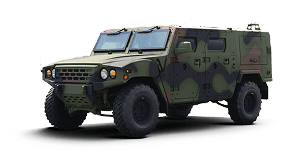

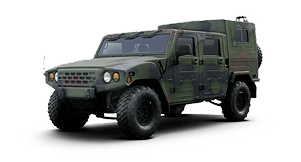

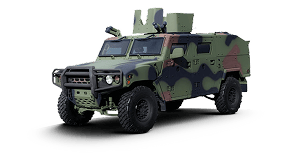

TYPE			Bulletproof Command Vehicle	Bulletproof Personnel Carrier	Bulletproof Reconnaissance Vehicle	Cab Chassis Truck	Multi Purpose Vehicle	Shop Van
Specifications	Overall Length	mm	7,900 or less	Up to 7,900 in length	Up to 7,900 in length	Up to 7,900 in length	Up to 7,900 in length	Up to 7,900 in length
	Overall Width	mm	2,500 or less	Up to 2,500 in length	Up to 2,500 in length	Up to 2,500 in length	Up to 2,500 in length	Up to 2,500 in length
	Overall Height	mm	3,100 or less	Up to 3,100 in length	Up to 3,100 in length	Up to 3,100 in length	Up to 3,100 in length	Up to 3,100 in length
	Ground Clearance	mm	410	410	410	410	410	410
Weight	Payload Capacity	Kg	410	410	410	410	410	410
Weight	GVW (Gross Vehicle Weight)	Kg	2,500 or more	2,500 or more	2,500 or more	2,500 or more	2,500 or more	2,500 or more
Performance	Approach Angle	°	38	38	38	38	38	38
	Departure Angle	°	40	40	40	40	40	40
	Minimum Turning Radius	m	8.8	8.8	8.8	8.8	8.8	8.8
	Maximum Speed	km/h	115	115	115	115	115	115
	Cruising Range	km	985	985	985	985	985	985
	Longitudinal Gradeability	%	60	60	60	60	60	60
	Lateral Gradeability	%	40	40	40	40	40	40
	Fording Depth	mm	1,000	1,000	1,000	1,000	1,000	1,000
Engine	Maximum Power Output	PS	280	280	280	280	280	280
	Maximum Torque	kgf.m	100	100	100	100	100	100
	Power Supply	V	24	24	24	24	24	24
	Emissions	-	Euro5	Euro5	Euro5	Euro5	Euro5	Euro5
	Fuel Tank Capacity	ℓ	200	200	200	200	200	200

* All information and illustrations are based on data available at the time of publication and are subject to change without notice according to any further improvements or operational environments.
